Manufacturer Part Number:

GNM1M2R71E103MA01D

OneIC Part Number:

233-GNM1M2R71E103MA01D

Manufacturer:

murata electronics

Description:

Cap Ceramic Array 0.01uF 25V X7R 20% 0504 SMD 2 Capacitor 125°C Paper T/R

Customer Reference:

Datasheet:

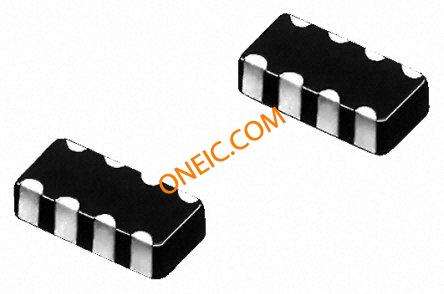

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package/Case	0504
Mounting	Surface Mount
Number of Capacitors	2
Terminal Pitch	0.64 mm
Capacitance Value	0.01 uF
Voltage	25 Vdc
Tolerance	20 %
Dielectric	X7R
Operating Temperature	-55 to 125 °C
Construction	Flat
Standard Package	Tape & Reel
Product Category	Capacitor Arrays & Networks
RoHS	RoHS Compliant
Capacitance	0.01 uF
Voltage Rating	25 V
Number of Elements	2
Operating Temperature Range	- 55 C to + 125 C
Case Length	1.37 mm
Case Width	1 mm
Case Height	0.2 mm
Termination Style	SMD/SMT
Series	GNM
Capacitance - nF	10 nF
Capacitance - pF	10000 pF
Dissipation Factor DF	0.025
Packaging	Reel
Product	Ceramic Capacitor Arrays
Factory Pack Quantity	4000
Temperature Coefficient / Code	15 %
Type	Capacitor Array
Product Length	1.37
EU RoHS	Compliant
Maximum Operating Temperature	125
Product Depth	1
Number of Terminals	4
Material	Ceramic
Product Height	0.6
Terminal Pitch	0.64
Unit Pack	4000
MOQ	4000
Selling Alternatives	GNM1M2R71E103MA01J
Subcategory	Capacitor Array
Lead Time	49 Days
Voltage - Rated	25V
Dielectric Material	Ceramic
Temperature Coefficient	X7R
Height - Seated (Max)	0.0.31" (0.80mm)
Size / Dimension	0.054" L x 0.039" W (1.37mm x 1.00mm)
Circuit Type	Isolated
Mounting Type	Surface Mount
Other Names	490-3401-2
rohs	Lead free / RoHS Compliant
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-55°C
Tolerance Minus	-20%
Tolerance Plus	+20%

Documents & Media

RESOURCE TYPE	LINK
Datasheets	GNM1M2R71E103MA01
Datasheets	Chip Monolithic Ceramic Caps Part Numbering
Datasheets	Chip Monolithic Ceramic Caps Catalog
