murata electronics

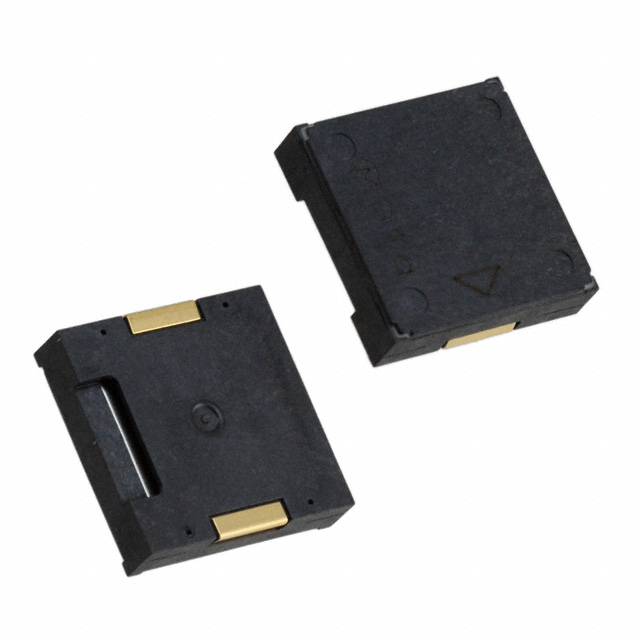

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Maximum Resonant Frequency | 4000(Typ) Hz |
| Technology | Piezo |
| Minimum Sound Pressure | 75 dBA |
| Tone Mode | External Drive |
| Type | Sounder |
| Termination Method | Solder Pad |
| Mounting | Surface Mount |
| Typical Operating Supply Voltage | 3 Vp-p |
| Product Height | 3 mm |
| Product Length | 12 mm |
| Standard Package | Tape & Reel |
| Product Category | Speakers & Transducers |
| RoHS | RoHS Compliant |
| Product | Speakers |
| Frequency | 4 kHz |
| Sound Pressure Level | 75 dB |
| Shape | Square |
| Termination Style | SMD/SMT |
| Length | 12 mm |
| Width | 12 mm |
| Height | 3 mm |
| Operating Temperature Range | - 20 C to + 70 C |
| Operating Voltage | 25 V |
| Packaging | Reel |
| Series | PK |
| Factory Pack Quantity | 1000 |
| Matchcode | SIGC4,0KO |
| T(A)min | -20°C |
| Leadfree Defin. | RoHS-conform |
| Unit Pack | 1000 |
| Rated voltage | 25V |
| MOQ | 1000 |
| Housing | YESy/n |
| Length/Diameter | 12mm |
| Sound pressure | 75dB |
| Technics | PIEZO |
| Standard Leadtime | 12 weeks |
| Automotive | NO |
| T(A)max | 70°C |
| Electronic | NO |
| Subcategory | Audio Indicator and Alerts |
| Lead Time | 70 Days |
| Mounting Type | Surface Mount |
| Voltage - Rated | 3Vp-p |
| Washable | No |
| Operating Mode | Continuous |
| Size / Dimension | Square - 12.00mm L x 12.00mm W x 3.00mm H |
| Input Type | zero-peak Signal |
| Voltage Range | 25V (Max) |
| Termination | Solder Pads |
| Operating Temperature | -20°C ~ 70°C |
| Driver Circuitry | Transducer, Externally Driven |
| rohs | Lead free / RoHS Compliant |
| Other Names | 490-4683-1 |
| Dimensions | 12 x 12 x 3mm |
| Drive Type | External |
| Maximum Frequency | 4000Hz |
| Maximum Operating Temperature | +70°C |
| Maximum Supply Voltage | 25V |
| Minimum Operating Temperature | -20°C |
| Sound Level | 75dB |
| DELETED | Compliant |
| Transducer Function | :Sounder |
| Supply Voltage Max | :25V |
| Sound Level SPL | :75dB |
| Sound Level Distance | :10cm |
| Resonant Frequency | :4kHz |
| External Height | :3.0mm |
| External Width | :12mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Depth | :12mm |
| External Depth | :12mm |
| External Length / Height | :3.0mm |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Termination Type | :SMD |
| Weight (kg) | 0.000361 |
| Tariff No. | 85318095 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | SMD Piezoelectric Sounder Part Numbering |
| Datasheets | Piezoelectric Sound Components |
