murata electronics

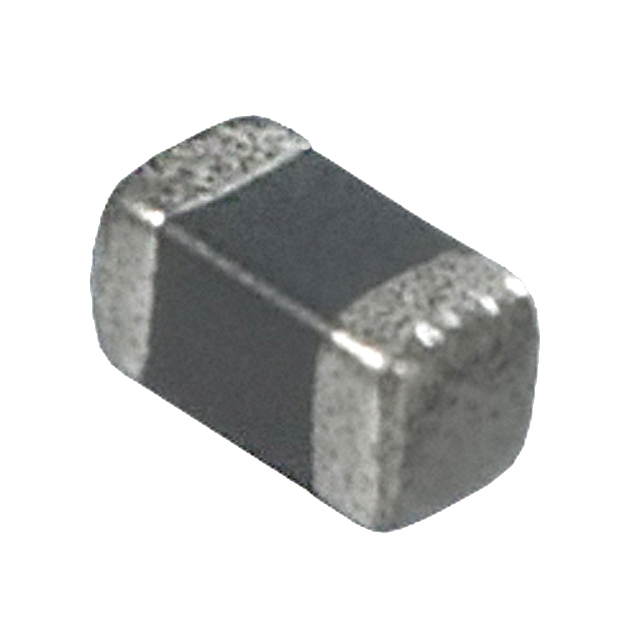

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 20603 |
| Resistance Range @ 25C | 7 to 50 Ohm |
| Type | PTC |
| Description of Terminals | Leadless |
| Percentage of Resistance Tolerance Range @ 25C | ±20 to ±25 % |
| Operating Temperature | -10 to 60 °C |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Product Category | Thermistors - PTC |
| RoHS | RoHS Compliant |
| Resistance | 47 Ohms |
| Tolerance | 20 % |
| Termination Style | SMD/SMT |
| Series | PRG |
| Operating Temperature Range | - 10 C to + 60 C |
| Current Rating | 630 mA |
| Dimensions | 0.8 mm W x 1.6 mm L x 0.8 mm H |
| Package / Case | 0603 |
| Packaging | Reel |
| Factory Pack Quantity | 4000 |
| Voltage | 24 V |
| Resistance @ 25C | 47 |
| Product Length | 1.6 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 60 |
| Percentage of Resistance Tolerance @ 25C | ±20 |
| Product Depth | 0.8 |
| Number of Terminals | 2 |
| Product Height | 0.8 |
| Minimum Operating Temperature | -10 |
| Package/Case | 0603 |
| Matchcode | PC47R |
| Width | 0.8mm |
| Max.oper.volt. | 24V |
| Unit Pack | 4000 |
| Standard Leadtime | 18 weeks |
| MOQ | 4000 |
| Max.current | 0.630A |
| Height | 0.8mm |
| Res.tolerance | 20% |
| Length | 1.6mm |
| Automotive | NO |
| Resistor value | 47R |
| Leadfree Defin. | RoHS-conform |
| Subcategory | Thermistor |
| Lead Time | 84 Days |
| Current - Max | 630mA |
| Voltage - Max | 24V |
| Current - Hold (Ih) (Max) | 29mA |
| Other Names | 490-2472-2 |
| Current - Trip (It) | 61mA |
| rohs | Lead free / RoHS Compliant |
| Application | Protection |
| Depth | 0.8mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -10°C |
| Resistance @ 25 °C | 47Ω |
| Temperature Coefficient Type | PTC |
| Unit Weight | 0.000141 oz |
| Thermistor Type | :PTC |
| Thermistor Tolerance | :± 20% |
| Thermistor Case Style | :0603 |
| No. of Pins | :2 |
| Operating Temperature Min | :-10°C |
| Operating Temperature Max | :60°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Current Max | :630mA |
| External Depth | :0.8mm |
| External Length / Height | :1.6mm |
| External Width | :0.8mm |
| Operating Voltage | :24V |
| Operating Voltage Range | :24V |
| Resistance Tolerance | :± 20% |
| Tripping Current | :75mA |
| Tripping Temperature | :100°C |
| Voltage Rating V DC | :24V |
| Weight (kg) | 0.005 |
| Tariff No. | 85363010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | PRG18/21BB Series |
| Datasheets | PRG Series, PTC Thermistors Part Numbering |
