Murata Manufacturing

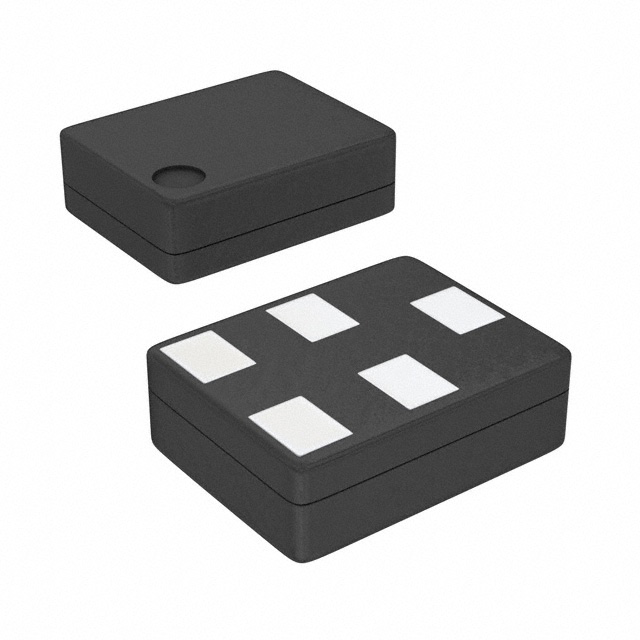

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Load Impedance | 50Ohm |
| EU RoHS | Supplier Unconfirmed |
| Maximum Operating Temperature | 85 |
| Product Depth | 1.05 |
| Mounting | Surface Mount |
| Number of Terminals | 5 |
| Product Length | 1.35 |
| Typical Center Frequency | 1575.5M |
| Product Height | 0.6 |
| Packaging | Carrier Tape and Reel |
| Maximum Insertion Loss | 1.3 |
| Minimum Operating Temperature | -30 |
| Type | SAW Filter for GPS |
| Pass Band Ripple | 0.6 |
| Filter Type | Band Pass |
| Insertion Loss | 0.95dB |
| Height (Max) | 0.024" (0.60mm) |
| Size / Dimension | 0.053" L x 0.041" W (1.35mm x 1.05mm) |
| Applications | GPS |
| Frequency | 1.576GHz Center |
| Standard Package | 1 |
| Mounting Type | Surface Mount |
| Other Names | 490-5016-1 |
| Package/Case | 5-SMD, No Lead |
| rohs | Lead free / RoHS Compliant |
| 插入损耗 | 0.95dB |
| 大小/尺寸 | 0.053" L x 0.041" W (1.35mm x 1.05mm) |
| 高度（最大值） | 0.024" (0.60mm) |
| 频率 | 1.576GHz Center |
| 封装/外壳 | 5-SMD, No Lead |
| 应用 | GPS |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | SAFEB1G57KE0F00 |
