Manufacturer Part Number:

SFECV10M7KA00-R0

OneIC Part Number:

233-SFECV10M7KA00-R0

Manufacturer:

murata electronics

Description:

Electromechanical Filter 10.7MHz Freq. 1MHz to 50MHz 330Ohm

Customer Reference:

Datasheet:

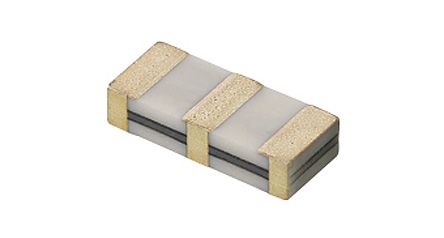

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
3dB Bandwidth	110 KHz
Maximum Insertion Loss	6 dB
3dB Bandwidth Upper Range	100 to 500 KHz
Cut-off/Nominal Frequency Upper Range	1 to 50 MHz
Cut-off/Nominal Frequency	10.7 MHz
Impedance	330 Ohm
Maximum Pass Band Ripple	1 dB
Standard Package	Tape & Reel
Maximum Pass Band Ripple	1
Cut-Off/Nominal Frequency	10.7M
Maximum Pass Band Ripple Range	0 to 1
Packaging	Tape and Reel
EU RoHS	Compliant
Type	Ceramic Filter
Matchcode	FILC10,7M110K3
Attenuation	3dB
T(A)min	-20°C
Leadfree Defin.	RoHS-conform
Unit Pack	2000
Mounting	SMD
MOQ	2000
Length	6.9mm
Height	1.5mm
Width	2.9mm
Bandwidth	110kHz
T(A)max	80°C
Standard Leadtime	14 weeks
Centerfrequency	10.7MHz
Automotive	NO
Industry Aliases	SFECV10.7MHS-A-TC
Subcategory	Filter Misc
Lead Time	70 Days
Filter Type	FM
Insertion Loss	6dB
Height (Max)	0.067" (1.70mm)
Size / Dimension	0.272" L x 0.059" W (6.90mm x 1.50mm)
Frequency	10.7MHz Center
Mounting Type	Surface Mount
Package/Case	2706 (6915 Metric), 3 PC Pad
rohs	Lead free / RoHS Compliant
Other Names	490-1229-1
Factory Pack Quantity	2000
Product	Ceramic Filters
Product Category	Signal Conditioning
Operating Temperature Range	- 20 C to + 80 C
Termination Style	SMD/SMT
Tradename	CERAFIL
RoHS	RoHS Compliant

Documents & Media

RESOURCE TYPE	LINK
Datasheets	CERAFIL for Audio/Visual Equipment Cat.
Datasheets	CERAFIL for FM Part Numbering
