Manufacturer Part Number:

SFSCE10M7WF04-R0

OneIC Part Number:

233-SFSCE10M7WF04-R0

Manufacturer:

murata electronics

Description:

Electromechanical Filter 10.7MHz Freq. 10.3MHz to 11.1MHz 470Ohm

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
3dB Bandwidth	10.3 to 11.1 MHz
Maximum Insertion Loss	6 dB
3dB Bandwidth Upper Range	1 to 100 MHz
Cut-off/Nominal Frequency Upper Range	1 to 50 MHz
Cut-off/Nominal Frequency	10.7 MHz
Impedance	470 Ohm
Maximum Pass Band Ripple	1.5 dB
Operating Temperature	-20 to 80 °C
Standard Package	Bulk
Maximum Pass Band Ripple	1.5
Maximum Operating Temperature	80
Cut-Off/Nominal Frequency	10.7M
Maximum Pass Band Ripple Range	1 to 2
Packaging	Embossed Tape
EU RoHS	Compliant
Minimum Operating Temperature	-20
Type	Ceramic Filter
Filter Type	FM
Insertion Loss	6dB

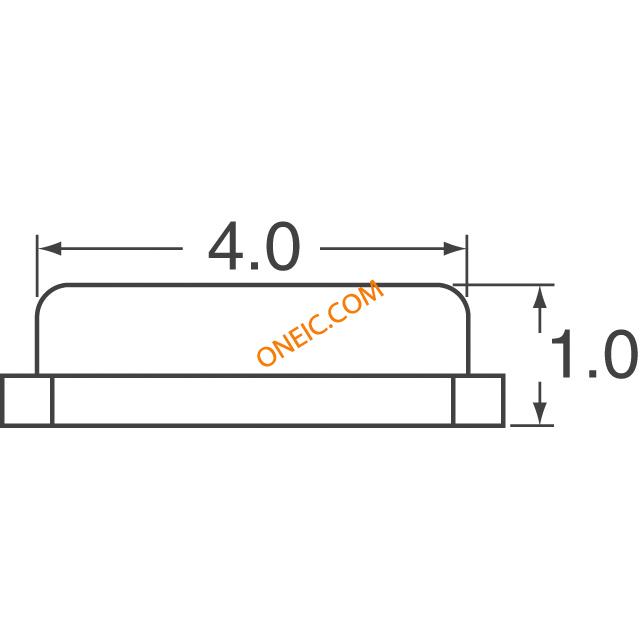

Height (Max)	0.039" (1.00mm)

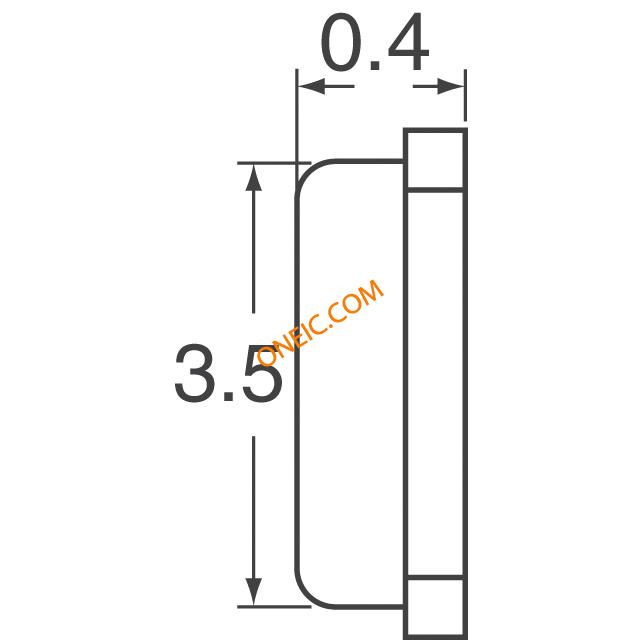

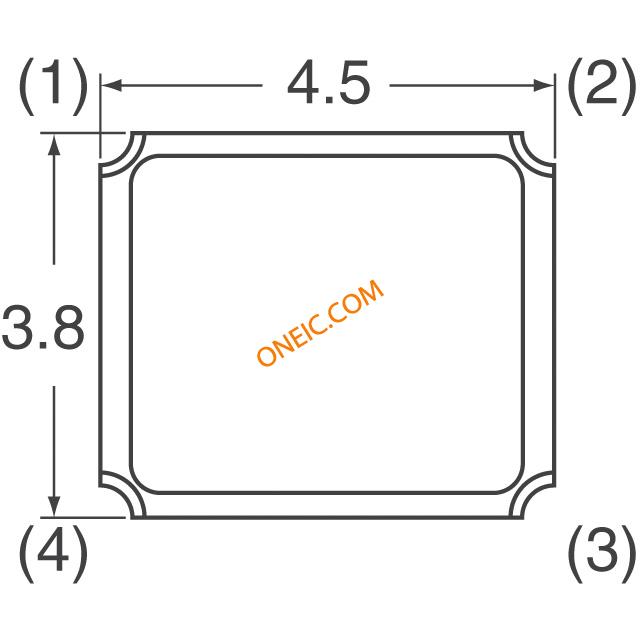

Size / Dimension	0.177" L x 0.150" W (4.50mm x 3.80mm)
Bandwidth	400kHz
Frequency	10.7MHz Center
Mounting Type	Surface Mount

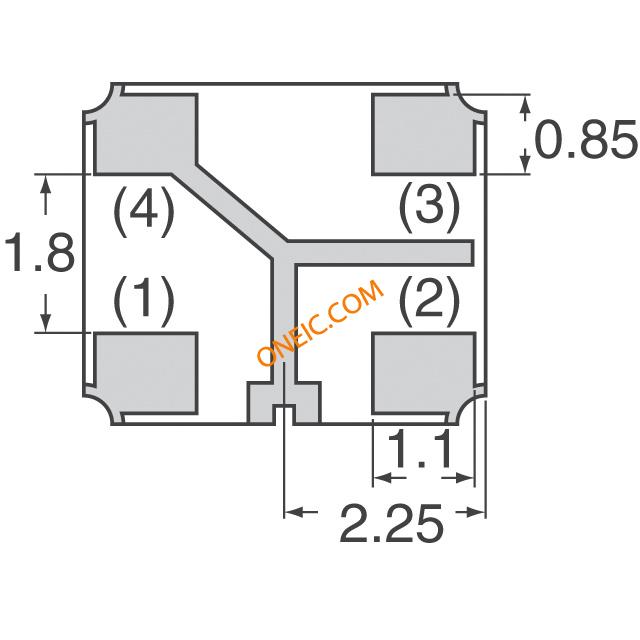

Package/Case	1715 (4538 Metric), 4 PC Pad
rohs	Lead free by exemption / RoHS Compliant
Other Names	490-4676-6
Factory Pack Quantity	1500
Product	Ceramic Filters
Product Category	Signal Conditioning
Operating Temperature Range	- 20 C to + 80 C
Tradename	CERAFIL
RoHS	RoHS Compliant
Rad Hardened	No
Operating Temp Range	-20C to 80C
Operating Temperature Max Deg. C	80C
Operating Temperature Min Deg. C	-20C
DELETED	Compliant

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Ceramic Filters for IF, Part Numbering
