Manufacturer Part Number:

SV01A103AEA01B00

OneIC Part Number:

233-SV01A103AEA01B00

Manufacturer:

murata electronics

Description:

Res Cermet Trimmer 10K Ohm 30% 1(Elec)Turn 4mm (11 X 14.9 X 3.1mm) Gull Wing SMD Bulk

Customer Reference:

Datasheet:

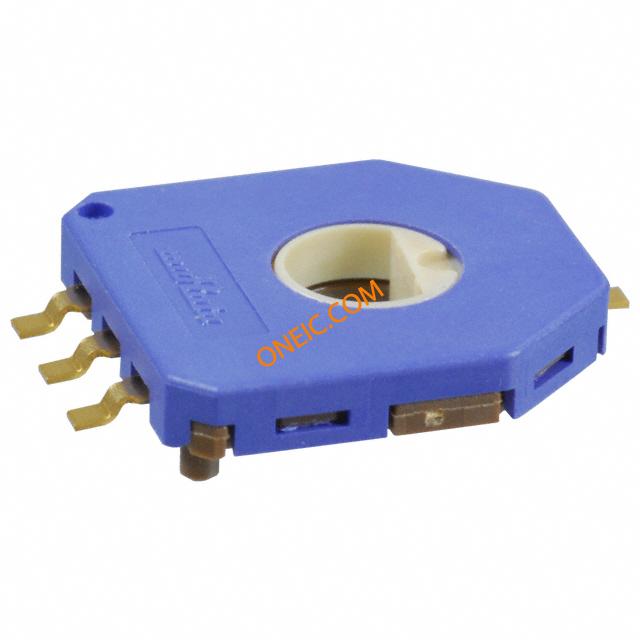

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Trimmer
Resistance Value	10 KOhm
Tolerance	30 %
Number of Turns	1(Elec) Turn
Mounting	Surface Mount
Technology	Cermet
Shaft Diameter	4 mm
Standard Package	Bulk
Resistance Value	10K
EU RoHS	Compliant
Product Depth	14.9
Temperature Coefficient	±500
Termination Style	Gull Wing
Product Length	11
Product Height	3.1
Packaging	Bulk
Shaft Diameter	4
Number of Turns	1(Elec)\|1(Mech)
Subcategory	Resistor Trimmers, Potentiometer and Rheostat
Lead Time	84 Days
Resistance (Ohms)	10k
Sensor Type	Rotary - Resistive
Linearity	±2%
Position - Sensing	333.33°
Resistance Tolerance	*
rohs	Lead free / RoHS Compliant
Depth	14.9mm
Dimensions	11 x 14.9 x 3.1mm
Height	3.1mm
Length	11mm
Maximum Resistance	10kΩ
Mounting Type	Surface Mount
Temperature Coefficient	±500ppm/°C
Factory Pack Quantity	50
Product Category	Board Mount Motion & Position Sensors
Mounting Style	SMD/SMT
RoHS	RoHS Compliant
Rad Hardened	No
Failure Rate	Not Required
Tolerance (+ or -)	30%
Resistance	10000 ohm
Product Length (mm)	11 mm
Product Depth (mm)	14.9 mm
Product Height (mm)	2.7 mm
Shaft Diameter (mm)	4 mm
Product Diameter (mm)	Not Required mm
DELETED	Compliant
Military Standard	Not Required
系列	SV01
容差	±30%
安装类型	表面贴装
高度	3.1mm
接端样式	鸥翼型
温度系数	±500ppm/°C
长度	11mm
尺寸	11 x 14.9 x 3.1mm
深度	14.9mm
方向	顶部调整
Board Level Components	Y
最大电阻	10kΩ
轴直径	4 mm。

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Rotary Position Sensors
