murata electronics
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Trimmer |
| Resistance Value | 10 KOhm |
| Tolerance | 30 % |
| Number of Turns | 1(Elec) Turn |
| Mounting | Through Hole |
| Technology | Cermet |
| Shaft Diameter | 4 mm |
| Standard Package | Trays |
| Resistance Value | 10K |
| EU RoHS | Compliant |
| Product Depth | 12.7 |
| Temperature Coefficient | ±500 |
| Termination Style | Pin |
| Product Length | 11 |
| Product Height | 2.9 |
| Packaging | Tray |
| Shaft Diameter | 4 |
| Number of Turns | 1(Elec)|1(Mech) |
| Subcategory | Resistor Trimmers, Potentiometer and Rheostat |
| Lead Time | 84 Days |
| Resistance (Ohms) | 10k |
| Sensor Type | Rotary - Resistive |
| Linearity | ±2% |
| Position - Sensing | 333.33° |
| Other Names | 490-3913 |
| Resistance Tolerance | * |
| rohs | Lead free / RoHS Compliant |
| Depth | 12.7mm |

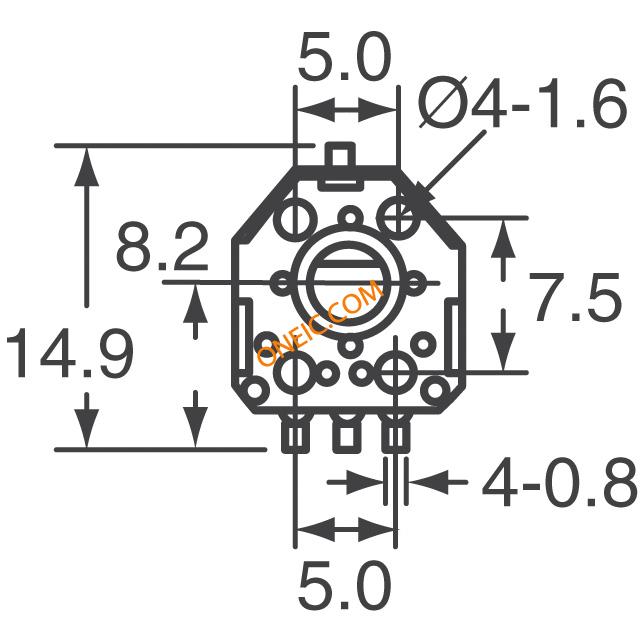

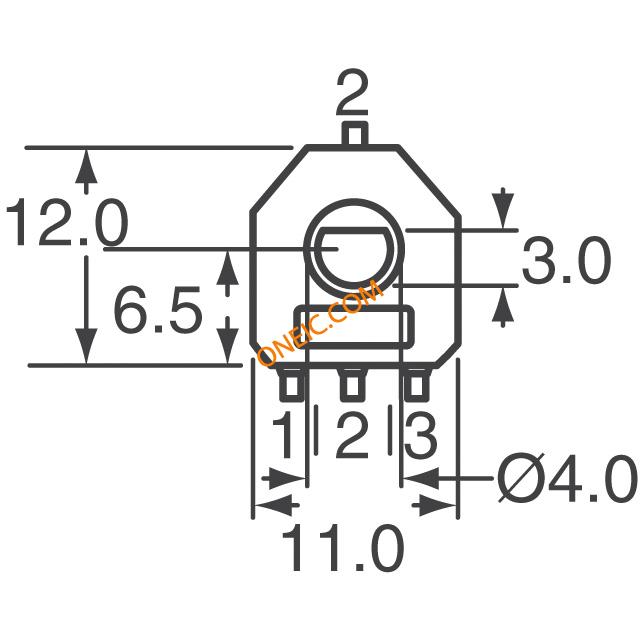

| Dimensions | 11 x 12.7 x 2.9mm |
| Height | 2.9mm |
| Length | 11mm |
| Maximum Resistance | 10kΩ |
| Mounting Type | Through Hole |
| Temperature Coefficient | ±500ppm/°C |
| Factory Pack Quantity | 1000 |
| Product Category | Board Mount Motion & Position Sensors |
| Mounting Style | Through Hole |
| RoHS | RoHS Compliant |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 30% |
| Resistance | 10000 ohm |
| Product Length (mm) | 11 mm |
| Product Depth (mm) | 12.7 mm |
| Product Height (mm) | 2.9 mm |
| Shaft Diameter (mm) | 4 mm |
| Product Diameter (mm) | Not Required mm |
| DELETED | Compliant |
| Military Standard | Not Required |
| Operating temperature | -10...+40 °C |
| Package | THD |
| 系列 | SV01 |
| 容差 | ±30% |
| 安装类型 | 通孔 |
| 高度 | 2.9mm |
| 接端样式 | 针 |
| 温度系数 | ±500ppm/°C |
| 长度 | 11mm |
| 尺寸 | 11 x 12.7 x 2.9mm |
| 深度 | 12.7mm |
| 方向 | 顶部调整 |
| Board Level Components | Y |
| 最大电阻 | 10kΩ |
| 轴直径 | 4 mm。 |
| Maxopervolt | 250 V |
| Minopertemp | -40 °C |
| Automotive | AEC-Q(200) |
| Width | 11 mm |
| Maxopertemp | 85 °C |
| Tempcoeff | 500 ppm |
| Restolerance | 30 % |
| Resistor value | 10K Ω |
| Leadfree Defin | RoHS-conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Rotary Position Sensors |
