Manufacturer Part Number:

TZB4P400AA10R00

OneIC Part Number:

233-TZB4P400AA10R00

Manufacturer:

murata electronics

Description:

Cap Trimmer Ceramic 8.5/40pF 100V N1200±500 ppm/°C 0% to 50% Top Adj 85°C T/R

Customer Reference:

Datasheet:

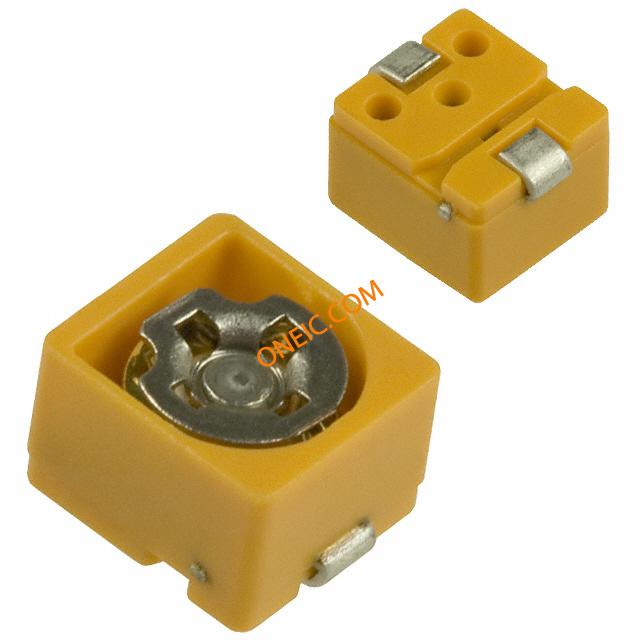

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Mounting	Surface Mount
Construction	Top Adj
Cmin/Cmax	8.5/40 pF
Voltage	100 Vdc
Tolerance	0 to 50 %
Temperature Coefficient	N1200±500 ppm/°C
Material	Ceramic
Product Depth	4.5 mm
Product Height	3 mm
Product Length	4 mm
Operating Temperature	-25 to 85 °C
Minimum Quality Factor	300@1MHz
Standard Package	Tape & Reel
Product Category	Trimmer / Variable Capacitors
RoHS	RoHS Compliant
Capacitance Range	8.5 pF to 40 pF
Voltage Rating	100 V
Operating Temperature Range	- 25 C to + 85 C
Termination Style	SMD/SMT
Product	Trimmer Capacitors - Ceramic Dielectric
Case Height	0.118 in
Case Length	0.177 in
Case Width	0.157 in
Dimensions	0.157 in W x 0.177 in L x 0.118 in H
Packaging	Reel
Q Minimum	300
Series	TZB4
Factory Pack Quantity	500
Temperature Coefficient / Code	N1200 +/- 500 PPM / C
Test Frequency	1 MHz
Type	Ceramic Trimmer Capacitor
Capacitance Value	8.5/40pF
Product Length	4
EU RoHS	Compliant
Maximum Operating Temperature	85
Product Depth	4.5
Temperature Coefficient	N1200±500
Product Height	3
Unit Pack	500
MOQ	500
Industry Aliases	TZBX4P400AA110T00
Subcategory	Capacitor Trimmer
Lead Time	49 Days
Height - Seated (Max)	0.126" (3.20mm)
Voltage - Rated	100V
Size / Dimension	Rectangular - 0.177" L x 0.157" W (4.50mm x 4.00mm)
Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Other Names	490-1978-2
Features	General Purpose
rohs	Lead free / RoHS Compliant

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Ceramic Trimmer Caps Part Numbering
Datasheets	TZ Series
