murata electronics

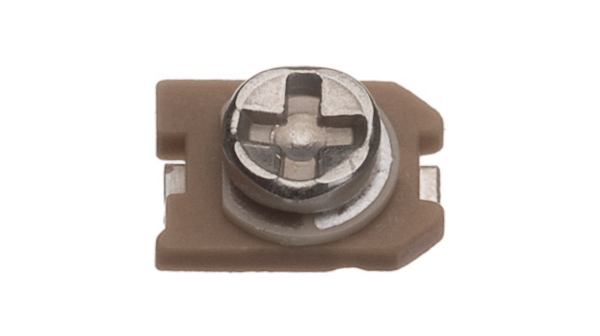

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Mounting | Surface Mount |
| Construction | Top Adj |
| Cmin/Cmax | 3/10 pF |
| Voltage | 100 Vdc |
| Tolerance | 0 to 50 % |
| Temperature Coefficient | N750±300 ppm/°C |
| Material | Ceramic |
| Product Depth | 4.5 mm |
| Product Height | 1.7 mm |
| Product Length | 3.2 mm |
| Operating Temperature | -25 to 85 °C |
| Minimum Quality Factor | 500@1MHz |
| Standard Package | Tape & Reel |
| Product Category | Trimmer / Variable Capacitors |
| RoHS | RoHS Compliant |
| Capacitance Range | 3 pF to 10 pF |
| Voltage Rating | 100 V |
| Operating Temperature Range | - 25 C to + 85 C |
| Termination Style | SMD/SMT |
| Product | Trimmer Capacitors - Ceramic Dielectric |
| Case Height | 0.063 in |
| Case Length | 0.177 in |
| Case Width | 0.126 in |
| Dimensions | 0.126 in W x 0.177 in L x 0.063 in H |
| Packaging | Reel |
| Q Minimum | 500 |
| Series | TZB4 |
| Factory Pack Quantity | 1000 |
| Temperature Coefficient / Code | N750 +/- 300 PPM / C |
| Test Frequency | 1 MHz |
| Type | Ceramic Trimmer Capacitors |
| Capacitance Value | 3/10pF |
| Product Length | 3.2 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Depth | 4.5 |
| Temperature Coefficient | N750±300 |
| Product Height | 1.7 |
| Unit Pack | 1000 |
| MOQ | 1000 |
| Height - Seated (Max) | 0.067" (1.70mm) |
| Voltage - Rated | 100V |
| Size / Dimension | Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Other Names | 490-1997-1 |
| Features | General Purpose |
| rohs | Lead free / RoHS Compliant |
| IEC-climate category | 25/85/21 |
| Rated voltage | 100 |
| Temperature coefficient | ±300 ppm/°C |
| Capacitance | 3...10 pF |
| Temperature range | -25...+85 °C |
| Size | SMD |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Ceramic Trimmer Caps Part Numbering |
