Manufacturer Part Number:

TZY2Z100A001R00

OneIC Part Number:

233-TZY2Z100A001R00

Manufacturer:

murata electronics

Description:

Cap Trimmer Ceramic 3/10pF 25V NPO±300 ppm/°C 0% to 100% Top Adj 85°C T/R

Customer Reference:

Datasheet:

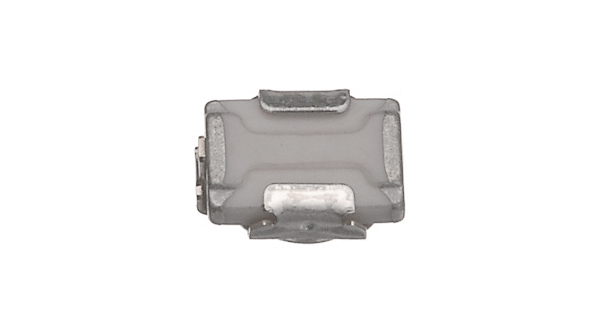

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Mounting	Surface Mount
Construction	Top Adj
Cmin/Cmax	3/10 pF
Voltage	25 Vdc
Tolerance	0 to 100 %
Temperature Coefficient	NPO±300 ppm/°C
Material	Ceramic
Product Depth	3.2 mm
Product Height	1.25(Max) mm
Product Length	2.5 mm
Operating Temperature	-25 to 85 °C
Minimum Quality Factor	500@1MHz
Standard Package	Tape & Reel
Product Category	Trimmer / Variable Capacitors
RoHS	RoHS Compliant
Capacitance Range	3 pF to 10 pF
Voltage Rating	25 V
Operating Temperature Range	- 25 C to + 85 C
Termination Style	SMD/SMT
Product	Trimmer Capacitors - Ceramic Dielectric
Case Height	0.049 in
Case Length	0.126 in
Case Width	0.098 in
Dimensions	0.098 in W x 0.126 in L x 0.049 in H
Packaging	Reel
Q Minimum	500
Series	TZB4
Factory Pack Quantity	2000
Temperature Coefficient / Code	NP0 +/- 300 PPM / C
Test Frequency	1 MHz
Type	Ceramic Trimmer Capacitors
Capacitance Value	3/10pF
Product Length	2.5
EU RoHS	Compliant
Maximum Operating Temperature	85
Product Depth	3.2
Temperature Coefficient	NPO±300
Product Height	1.25(Max)
Unit Pack	2000
MOQ	2000
Industry Aliases	TZVY2Z100A110T00
Subcategory	Capacitor Trimmer
Lead Time	126 Days
Height - Seated (Max)	0.049" (1.25mm)
Voltage - Rated	25V
Size / Dimension	Rectangular - 0.126" L x 0.098" W (3.20mm x 2.50mm)
Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Other Names	490-2007-2
Features	General Purpose
rohs	Lead free / RoHS Compliant
Depth	2.5mm
Dielectric	Ceramic
Height	1.25mm
Length	3.2mm
Maximum Capacitance	10pF
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-25°C
Package/Case	Y2
Operating Temp Range	-25C to 85C
Rad Hardened	No
Failure Rate	Not Required
Tolerance (+ or -)	0% to 100%
Temp Coeff (Dielectric)	NPO�300 ppm/�C
Mounting Style	Surface Mount
Q	500
Product Length (mm)	2.5 mm
Product Depth (mm)	3.2 mm
Product Height (mm)	1.25 mm
Capacitance Range (Min/Max) (pF)	3/10
Size (mm)	3.2 X 2.5 X 1.25
Product Diameter (mm)	Not Required mm
Capacitance Range (Min/Max)	3/10 pF
DELETED	Compliant
调节类型	Top Adjustment
电容范围	3 ~ 10pF
系列	TZY2
高度 - 安装（最大值）	0.049" (1.25mm)
电压 - 额定	25V
大小/尺寸	Rectangular - 0.126" L x 0.098" W (3.20mm x 2.50mm)
IEC-climate category	25/85/21
Rated voltage	25
Temperature coefficient	±300 ppm/°C
Capacitance	3...10 pF
Temperature range	-25...+85 °C
Size	SMD

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Ceramic Trimmer Caps Part Numbering
