Manufacturer Part Number:

0905-0-15-20-75-14-11-0

OneIC Part Number:

258-0905-0-15-20-75-14-11-0

Manufacturer:

Mill-Max

Description:

Contact Probes Std. Stroke Hi-Pro SMT .693

Customer Reference:

Datasheet:

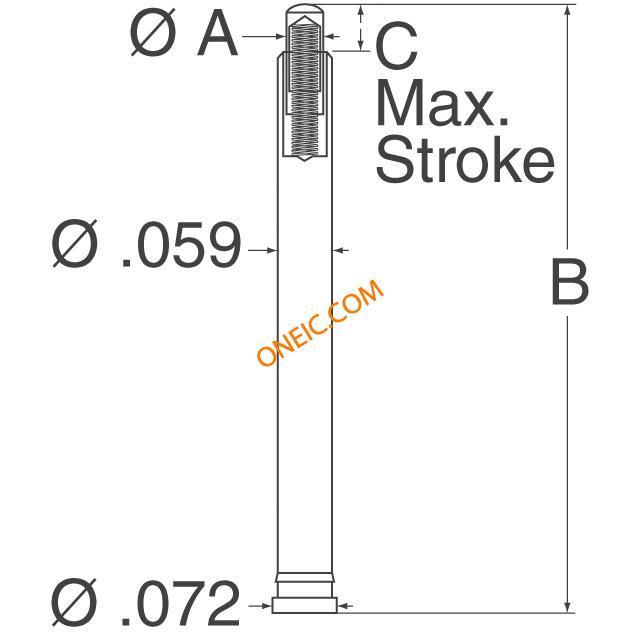

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Plating	Gold
Material	Copper Alloy
Plating - Thickness	20µin (0.51µm)
Mounting Type	Surface Mount
Standard Package	500
Product Category	Contact Probes
Current Rating	3 A
Series	0905
Packaging	Bulk
Contact Material	Copper Alloy
RoHS	RoHS Compliant
Connector Type	:Contact
Connector Tip Style	:Radius
Overall Length	:0.693"
Spring Force Initial	:25g
External Height	:0.693"
Travel	:0.055"
Weight (kg)	0
Tariff No.	85366930
Brand/Series	905Series
Current,Rating	2A
InsulationType	Insulated
Material,Body	BrassAlloy
MountingType	Panel
NumberofContacts	2
PrimaryType	SpringTerminal
SpecialFeatures	SpringLoaded
Termination	SMT
Type	Plug
rohs	RoHS Compliant Part

Documents & Media

RESOURCE TYPE	LINK
Datasheets	09xx Spring Loaded (metric)
Datasheets	09xx Spring loaded Connectors(in.)
