Manufacturer Part Number:

24LC00T-I/OT

OneIC Part Number:

260-24LC00T-I-OT

Manufacturer:

microchip

Description:

EEPROM Serial-I2C 128-Bit 16 x 8 3.3V/5V 5-Pin SOT-23 T/R

Customer Reference:

Datasheet:

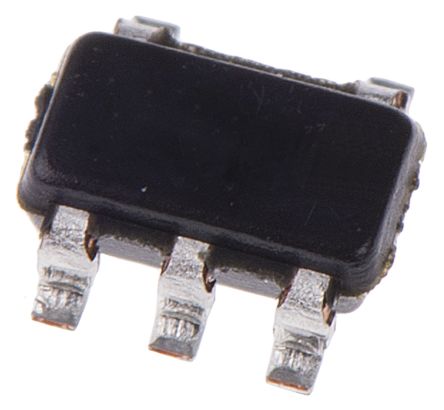

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	5SOT-23
Interface Type	Serial-I2C
Density	128 Bit
Maximum Operating Frequency	0.4 MHz
Maximum Random Access Time	900 ns
Typical Operating Supply Voltage	3.3\|5 V
Organization	16x8
Data Retention	200(Min) Year
Operating Temperature	-40 to 85 °C
Programming Voltage	2.5 to 5.5 V
Standard Package	Tape & Reel
Hardware Data Protection	Yes
Mounting	Surface Mount
Package Width	1.8(Max)
PCB	5
Screening Level	Industrial
Data Retention	200(Min)
Typical Operating Supply Voltage	3.3\|5
EU RoHS	Compliant
Density	128
Minimum Operating Temperature	-40
Maximum Operating Frequency	0.4
Supplier Package	SOT-23
Standard Package Name	SOT-23
Maximum Operating Temperature	85
Package Length	3.1(Max)
Minimum Operating Supply Voltage	2.5
Pin Count	5
Maximum Operating Current	2
Package Height	1.3(Max)
Maximum Random Access Time	900
Packaging	Tape and Reel
Maximum Operating Supply Voltage	5.5
Lead Shape	Gull-wing
Matchcode	24LC00T-I/OT
Unit Pack	3000
Standard Leadtime	24 weeks
MOQ	3000
Permis.T(A) min	-40°C
Leadfree Defin.	RoHS-conform
Read/write cycl	1M
Permis.T(A) max	85°C
Automotive	NO
Type	I2C
Organisation	16x8
U(cc)	2.5V
Format - Memory	EEPROMs - Serial
Supplier Device Package	SOT-23-5
Memory Type	EEPROM
Memory Size	128 (16 x 8)
Voltage - Supply	2.5 V ~ 5.5 V
Interface	I²C, 2-Wire Serial
Speed	100kHz, 400kHz
Package/Case	SC-74A, SOT-753
rohs	Lead free / RoHS Compliant
Other Names	24LC00T-I/OTCT
Dimensions	3.1 x 1.8 x 1.3mm
Height	1.3mm
Length	3.1mm
Maximum Operating Supply Voltage	5.5 V
Maximum Operating Temperature	+85 °C
Minimum Operating Supply Voltage	2.5 V
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Package Type	SOT-23
Width	1.8mm
Maximum Operating Current	2 mA
Product Category	EEPROM
RoHS	RoHS Compliant
Factory Pack Quantity	3000
Operating Supply Voltage	2.5 V to 5.5 V
Mounting Style	SMD/SMT
Supply Voltage - Max	5.5 V
Package / Case	SOT-23-5
Maximum Clock Frequency	400 kHz
Supply Voltage - Min	2.5 V
Access Time	900 nS
Operating Current	500 uA
Access Time (Max)	900 ns
Frequency	0.4 MHz
Operating Temp Range	-40C to 85C
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Operating Temperature Classification	Industrial
Programmable	Yes
Write Protection	Yes
Supply Current	3 mA
Rad Hardened	No
Operating Supply Voltage (Typ)	3.3/5 V
Operating Supply Voltage (Min)	2.5 V
Operating Supply Voltage (Max)	5.5 V
DELETED	Compliant
Memory Configuration	:16 x 8
Clock Frequency	:400kHz
Supply Voltage Min	:2.5V
Supply Voltage Max	:5.5V
Memory Case Style	:SOT-23
No. of Pins	:5
IC Interface Type	:2 Wire, I2C, Serial
Operating Temperature Min	:-40°C
Operating Temperature Max	:85°C
MSL	:MSL 1 - Unlimited
SVHC	:No SVHC (20-Jun-2013)
Base Number	:24
IC Generic Number	:24LC00
Logic Function Number	:24LC00
Memory Voltage Vcc	:2.5V
Operating Temperature Range	:-40°C to +85°C
Supply Voltage Range	:2.5V to 5.5V
Weight (kg)	0.000033
Tariff No.	85423261
Case	SOT23-5
Memory capacity	128bit
Memory organisation	16x8bit
Gross weight	0.46 g
Operating temperature	-40...85°C
Clock frequency	400kHz
Kind of memory	EEPROM
Operating voltage	2.5...5.5V
Multiplicity	1
Integrated circuit type	memory
Collective package [pcs]	20
Maximum number of cycles	1000000
Access time	3ms
spg	20

Documents & Media

RESOURCE TYPE	LINK
Datasheets	24AA00, 24(L)C00 Series
