microchip

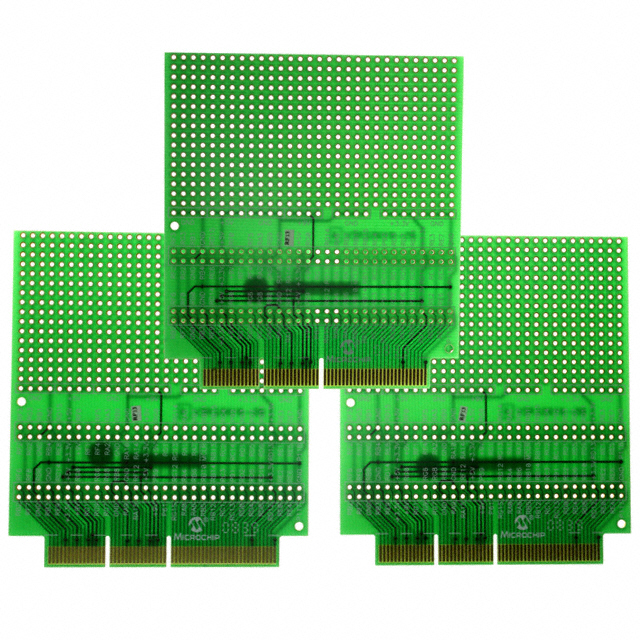

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Development Kit |
| Standard Package | Boxed |
| Product Category | Daughter Cards & OEM Boards |
| RoHS | RoHS Compliant |
| Product | Daughter Boards |
| For Use With | DM240001 |
| Core | dsPIC, PIC |
| Data Bus Width | 8 bit |
| Description/Function | Prototype PICtail plus daughter board |
| Factory Pack Quantity | 1 |
| Unit Pack | 1 |
| MOQ | 7 |
| Accessory Type | Prototyping Board |
| For Use With/Related Products | Explorer 16 (DM240001) |
| rohs | Lead free / RoHS Compliant |
| Classification | Module |
| Core Type | PIC |
| Kit Contains | 3 Blank Prototype PICtail Plus Daughter Boards |
| Technology | 8 bit |
| Silicon Manufacturer | :Microchip |
| Core Architecture | :PIC, dsPIC |
| Core Sub-Architecture | :PIC24, dsPIC33 |
| Silicon Core Number | :(Not Applicable) |
| Silicon Family Name | :(Not Available) |
| Kit Contents | :3x Blank Prototype PICtail Plus Daughter Boards |
| Features | :Card-Edge Connection, Plugged Directly into PICtail Plus Expansion Socket |
| SVHC | :No SVHC (20-Jun-2013) |
| Development Tool Type | :Prototype Daughter Board |
| Kit Features | :Generous Prototyping Area |
| Weight (kg) | 0.25 |
| Tariff No. | 85423190 |
| Multiplicity | 1 |
| Connector type | PICtail Plus |
| Gross weight | 0.11 kg |
| Type of accessories for development kits | breadboard prototype expansion board |
| Collective package [pcs] | 3 |
| spg | 3 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Graphics Quick Ref Guide |
| Datasheets | PCM18XS1 |
