microchip

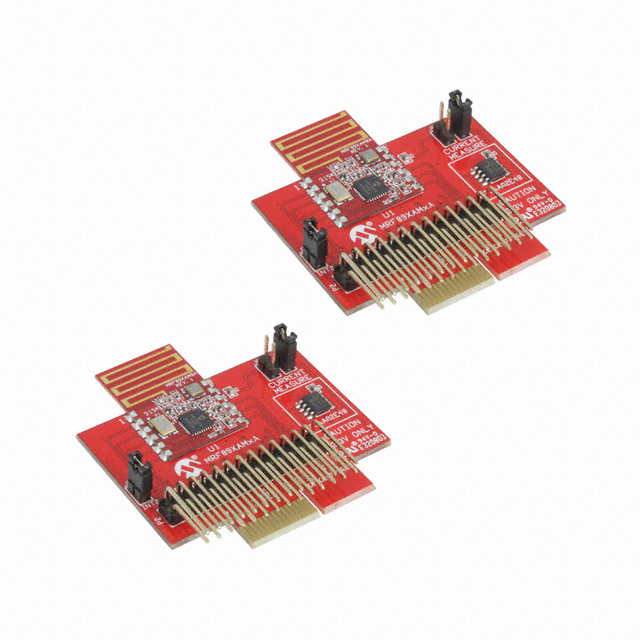

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Development Kit |
| Family | MRF89XAM8A |
| Standard Package | Boxed |
| RoHS | RoHS Compliant |
| Product | Daughter Boards |
| For Use With | MRF89XAM8A |
| Core | PIC |
| Data Bus Width | 8 bit |
| Description/Function | The MRF89XAMxA PICtailT/PICtail Plus Daughter Board is a demonstration and development daughter board for MRF89XAM8A module |
| Dimensions | 2 in x 1.675 in |
| Interface Type | SPI |
| Operating Supply Voltage | 3.3 V |
| Function | TRANSCEIV. |
| Matchcode | MRF89XAM8A PICT. DAUGHTER 868 |
| P(out) | 7dBm |
| Datarate | 256kbps |
| Unit Pack | 1 |
| Standard Leadtime | 12 weeks |
| MOQ | 1 |
| Leadfree Defin. | RoHS-conform |
| Frequency | 868MHz |
| Operat.temp. | -40 +85°C |
| Encryption | NY/N |
| Automotive | NO |
| Supply voltage | 2,2-3,8V |
| For Use With/Related Products | MRF89XAM8A |
| Other Names | AC1641381 |
| Supplied Contents | Module |
| rohs | Lead free / RoHS Compliant |
| Classification | Development Board |
| Core Type | PIC |
| Kit Contains | MRF89XAM8A PICtail/PICtail Plus Daughter Board |
| Technology | PICtail |
| Silicon Manufacturer | :Microchip |
| Core Architecture | :PIC |
| Core Sub-Architecture | :PIC18 |
| Silicon Core Number | :DM183032 |
| Silicon Family Name | :PICDEM |
| Kit Contents | :Board |
| Features | :MiWi Development Environment |
| SVHC | :No SVHC (16-Dec-2013) |
| MCU Supported Families | :Piccolo |
| Weight (kg) | 0.1 |
| Tariff No. | 85423190 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | MRF89XAMxA User Guide |
| Datasheets | MRF89XAM8A |
| Datasheets | MRF87XAMxA Info Sheet |
