Microchip Technology

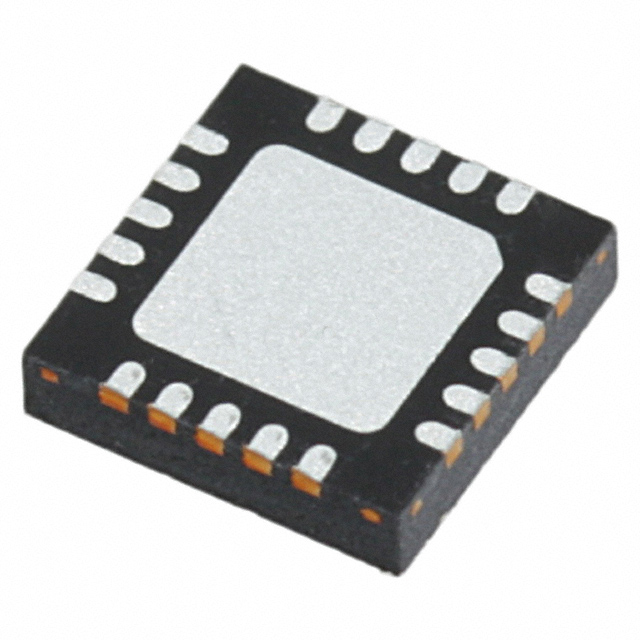

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Capacitive Touch Screen Controller |
| Mounting Type | Surface Mount |
| Data Interface | SPI™ |
| Supplier Device Package | 20-QFN (4x4) |
| Number of Inputs/Keys | 8 Key |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | 0°C ~ 85°C |
| Current - Supply | 120µA |
| Voltage - Supply | 3 V ~ 3.6 V |
| Standard Package | 4,000 |
| Touch Panel Interface | 4-Wire |
| Package/Case | 20-TQFN Exposed Pad |
| Other Names | CAP1128-1-BP-TRCT |
| rohs | Lead free / RoHS Compliant |
| RoHS | RoHS Compliant |
| Package / Case | 20-TQFN Exposed Pad |
| Case | QFN20 |
| Integrated circuits features | ESD-protected |
| Mounting | SMD |
| Gross weight | 1.39 g |
| Number of channels | 8 |
| Integrated circuit type | driver/sensor |
| spg | 4000 |
| Collective package [pcs] | 4000 |
| Kind of integrated circuit | LED controller, capacitive sensor |
| Multiplicity | 1 |
| 电压 - 电源 | 3 V ~ 3.6 V |
| 供应商器件封装 | 20-QFN (4x4) |
| 触摸面板接口 | 4-Wire |
| 操作温度 | 0°C ~ 85°C |
| 装配类型 | Surface Mount |
| 封装/外壳 | 20-TQFN Exposed Pad |
| 类型 | Capacitive Touch Screen Controller |
| 输入/按键数 | 8 Key |
| 数据接口 | SPI™ |
| 电流 - 电源 | 120µA |
| 最大输出电流 | 24mA |
| 长度 | 4.1mm |
| 传感器类型 | 电容式 |
| 开关模式 | 模拟，数字式 |
| 最高开关频率 | 2 kHz |
| 最大电源电流 | 600 μA |
| 高度 | 0.85mm |
| 最大输出电压 | 0.4 V |
| 最大工作电源电压 | 3.6 V |
| 安装类型 | 表面贴装 |
| 最低工作温度 | -40 °C |
| 最小工作电源电压 | 3 V |
| 最高工作温度 | +125 °C |
| 宽度 | 4.1mm |
| 封装类型 | QFN |
| 引脚数目 | 20 |
| 尺寸 | 4.1 x 4.1 x 0.85mm |
| 输出类型 | 漏极开路、推挽式 |
| Automotive | NO |
| Leadfree Defin | RoHS-conform |
| Package | QFN20 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | CAP1128 |
