Manufacturer Part Number:

DM240312

OneIC Part Number:

260-DM240312

Manufacturer:

microchip

Description:

Low Cost And Efficient Development Board For PIC24FJ256DA210

Customer Reference:

Datasheet:

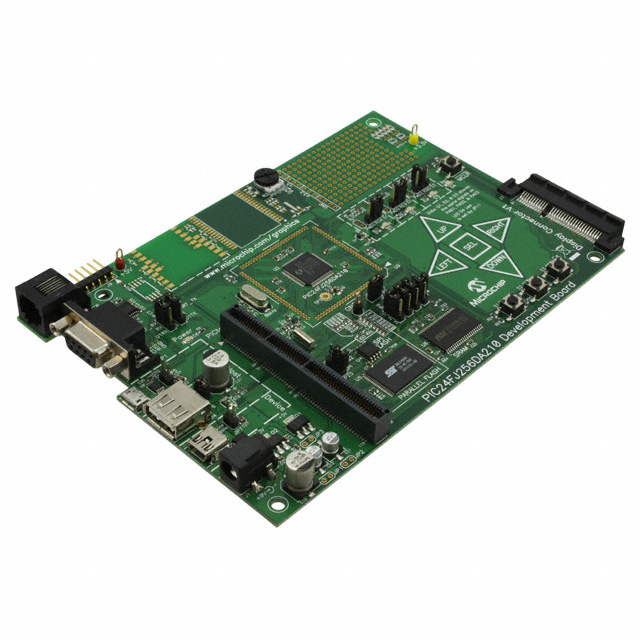

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Development Kit
Standard Package	Boxed
RoHS	RoHS Compliant
Product	Demonstration Boards
Core	PIC
Interface Type	Serial, USB
Operating Supply Voltage	9 to 15 V
Data Bus Width	16 bit
Description/Function	Demonstration board
For Use With	AC164127-4, AC164127-6, AC164139
Matchcode	PIC24FJ256DA210 DEV.BOARD
Unit Pack	1
Standard Leadtime	6 weeks
MOQ	1
Leadfree Defin.	RoHS-conform
Developmenttool	EVALBOARD
For Use With/Related Products	PIC24FJ256DA210
Contents	Board
rohs	Lead free / RoHS Compliant
Classification	Development Kit
Core Type	PIC
Kit Contains	Development Board for the PIC24FJ256DA210
Technology	16 bit
Silicon Manufacturer	:Microchip
Core Architecture	:PIC
Core Sub-Architecture	:PIC24
Silicon Core Number	:PIC24F
Silicon Family Name	:PIC24FJxxDAxxx
Kit Contents	:Board
Features	:PICtail Plus Modular Expansion Slot, Capacitive Touch Pads and Switches
SVHC	:No SVHC (20-Jun-2013)
Kit Features	:PIC24FJ256DA210 MCU, Capacitive Touch Pads and Switches, USB Connectors, Debug Connectors
MCU Supported Families	:PIC24FJ256DA210
Weight (kg)	0.4
Tariff No.	85423190
Number of keys	5
Multiplicity	1
Communication with PC	RS232, USB
Number of diodes	3
Gross weight	0.2 kg
Application	for developing graphic applications
Interface	UART
Type of development kit	Microchip

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Graphics Quick Ref Guide
Datasheets	PIC24FJ256DA210(DM240312)
Datasheets	PIC24FJ256DA210(DM240312)QSG
