microchip

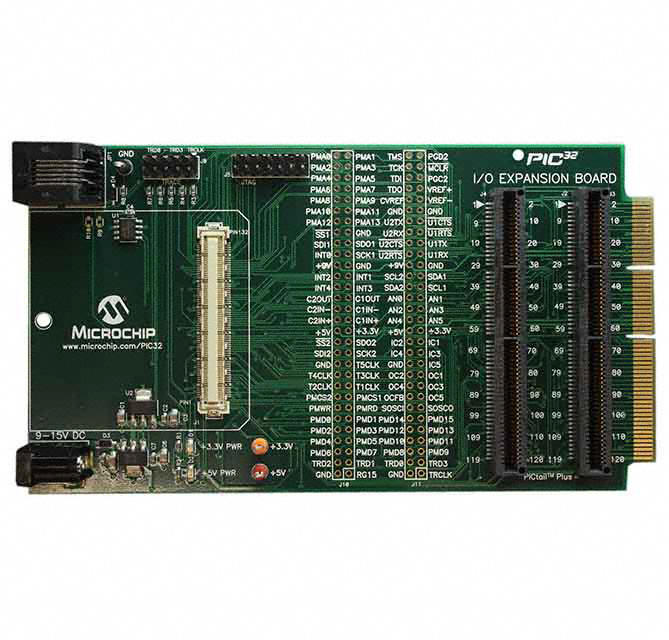

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Development Kit |
| Standard Package | Boxed |
| Product Category | Sockets & Adapters |
| RoHS | RoHS Compliant |
| Product | I/O Expansion Boards |
| For Use With | DM320001, DM320003 |
| Description/Function | I/O expansion board provides starter board (DM320001, DM320003) users with full access to MCU signals, JTAG debugging, ICSP development, and connection of PICtail Plus daughter cards |
| Factory Pack Quantity | 1 |
| EU RoHS | Supplier Unconfirmed |
| Matchcode | PIC32 I/O EXPANSION BOARD |
| Unit Pack | 1 |
| Standard Leadtime | 6 weeks |
| MOQ | 1 |
| Leadfree Defin. | RoHS-conform |
| Developmenttool | EVALBOARD |
| Accessory Type | Expansion Module |
| For Use With/Related Products | DM320001, DM320003 |
| rohs | Lead free / RoHS Compliant |
| Classification | Module |
| Core Type | PIC32 |
| Kit Contains | I/O Expansion Board |
| Technology | 32 bit |
| Silicon Manufacturer | :Microchip |
| Core Architecture | :PIC |
| Core Sub-Architecture | :PIC32 |
| Silicon Core Number | :PIC32MX |
| Silicon Family Name | :(Not Available) |
| Kit Contents | :Board |
| Features | :2-Wire (ICSP) Interface |
| SVHC | :No SVHC (20-Jun-2013) |
| Development Tool Type | :Expansion Board |
| Kit Features | :JTAG Debugging, ICSP Development, and Connection of PICtail Plus Daughter Cards |
| Supported Devices | :PIC32 |
| Weight (kg) | 0.01 |
| Tariff No. | 85423190 |
| Gross weight | 0.13 kg |
| Multiplicity | 1 |
| Programmers/Erasers features | I/O lines led to goldpin connectors |
| Type of development kit | Microchip |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | DM320002 Schematics |
