microchip

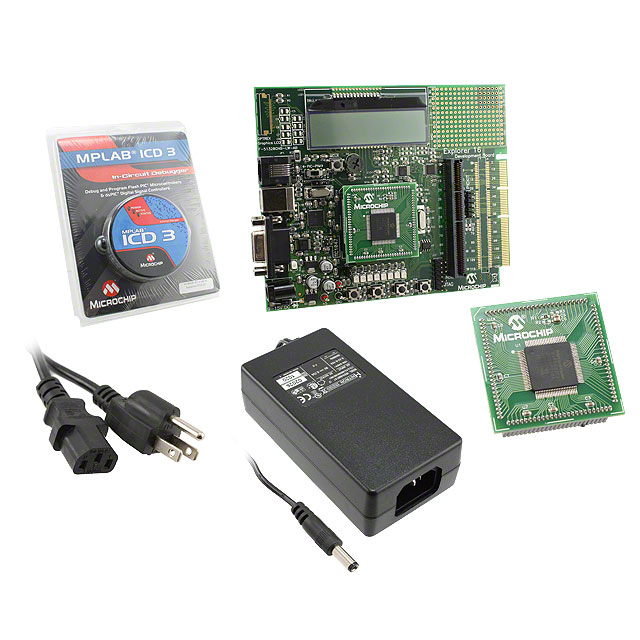

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Development Kit |
| Standard Package | Boxed |
| Product Category | Development Boards & Kits - PIC / DSPIC |
| RoHS | RoHS Compliant |
| Product | Starter Kits |
| Tool Is For Evaluation Of | PIC24FJ128GA010, dsPIC33F256GP710 |
| Core | dsPIC, PIC |
| Operating Supply Voltage | 9 V |
| Data Bus Width | 16 bit, 32 bit |
| Description/Function | MPLAB ICD 3 with Explorer 16 Kit is a complete set of tools for application development using Microchip PIC24F, PIC24H, and dsPIC33 16-bit MCUs |
| Factory Pack Quantity | 1 |
| Matchcode | MPLAB-ICD3 WITH EXPLORER 16 |
| Unit Pack | 1 |
| Standard Leadtime | 6 weeks |
| MOQ | 1 |
| Leadfree Defin. | RoHS-conform |
| Developmenttool | DEBUGGER |
| For Use With/Related Products | PIC24F, PIC24H, dsPIC33 |
| Contents | 2 Boards, ICD3 Debugger |
| rohs | Lead free / RoHS Compliant |
| Classification | Development Kit |
| Core Type | PIC |
| Kit Contains | CD with Documentation, Compiler, Explorer 16 Development Board, MPLAB ICD 3 with Explorer 16 Kit, PIC24FJ128GA010 and dsPIC33F256GP710 Device PIMs, Power Supply |
| Technology | 16 bit |
| Silicon Manufacturer | :Microchip |
| Core Architecture | :PIC |
| Core Sub-Architecture | :PIC24, dsPIC33 |
| Silicon Core Number | :PIC24F, dsPIC33F |
| Silicon Family Name | :dsPIC33FJxxGPxxx, PIC24FJxxGAxxx |
| Kit Contents | :Board, User Guide |
| Features | :Includes MPLAB ICD 3 debugger |
| SVHC | :No SVHC (20-Jun-2013) |
| Development Tool Type | :Development Kit |
| Kit Features | :RS232 Serial Port, On-board Analog Thermal Sensor, USB Connectivity, In-Circuit Debugger Connector |
| MCU Supported Families | :PIC24F, PIC24H, dsPIC33 |
| Supported Devices | :PIC24FJ128GA010, dsPIC33F256GP710 |
| Weight (kg) | 1.3 |
| Tariff No. | 85423190 |
| ForUseWith | 16-bitmicrocontrollers |
| Gross weight | 1.13 kg |
| Multiplicity | 1 |
| Type of development kit | Microchip |
