microchip

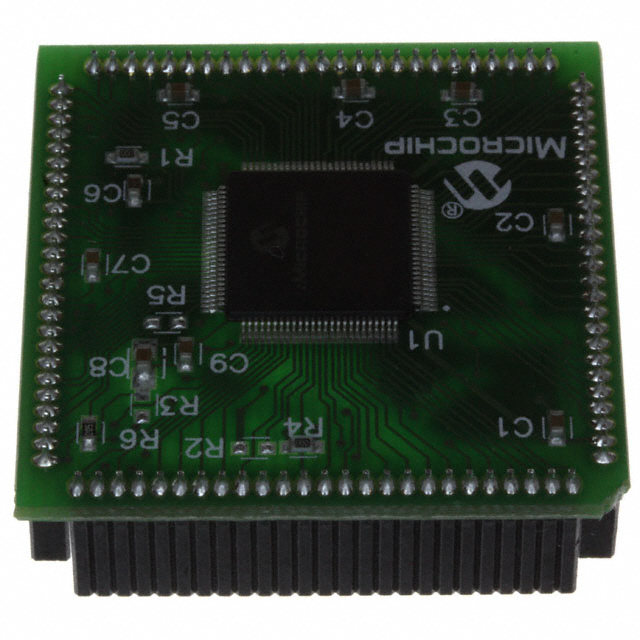

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Development Kit |
| Standard Package | Bulk |
| Product Category | Daughter Cards & OEM Boards |
| RoHS | RoHS Compliant |
| Product | Plug-In Modules |
| For Use With | DM240001 |
| Core | PIC |
| Factory Pack Quantity | 1 |
| Tool Is For Evaluation Of | PIC24FJ256GB110 |
| Matchcode | MA240014 |
| Unit Pack | 1 |
| Standard Leadtime | 6 weeks |
| MOQ | 1 |
| Leadfree Defin. | RoHS-conform |
| Developmenttool | ACCESSORY |
| Accessory Type | Plug-In Module (PIM) - PIC24FJ256GB110 |
| For Use With/Related Products | Explorer 16 (DM240001 or DM240002) |
| rohs | Lead free / RoHS Compliant |
| Classification | Module |
| Core Type | PIC |
| Kit Contains | Plug-in Module for the PIC24FJ256GB110 MCU |
| Technology | 16 bit |
| Convert From | :100-TQFP |
| Convert To | :Explorer 16 Board |
| Series | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Development Tool Type | :Development Board |
| MCU Supported Families | :PIC24F |
| Supported Devices | :PIC24FJ256GB110 |
| Weight (kg) | 0.4 |
| Tariff No. | 85423190 |
| Contents | 100-pinPIC24FJ256GB |
| ForUseWith | Explorer16DevelopmentBoard(DM240001orDM240002) |
| Gross weight | 0.11 kg |
| Multiplicity | 1 |
| Type of accessories for development kits | Plug-in module |
| Associated items | EXPLORER-16 |
| Associated circuits | PIC24FJ256GB110 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 100-Pin PIM Dimensions |
| QTY | UNIT PRICE | EXT PRICE |
|---|
| Company |
|
|---|---|
| Delivery | 3-5days |
| Costs | $75+ |
| Company |
|
|---|---|
| Delivery | 7-10days |
| Costs | $25+ |
