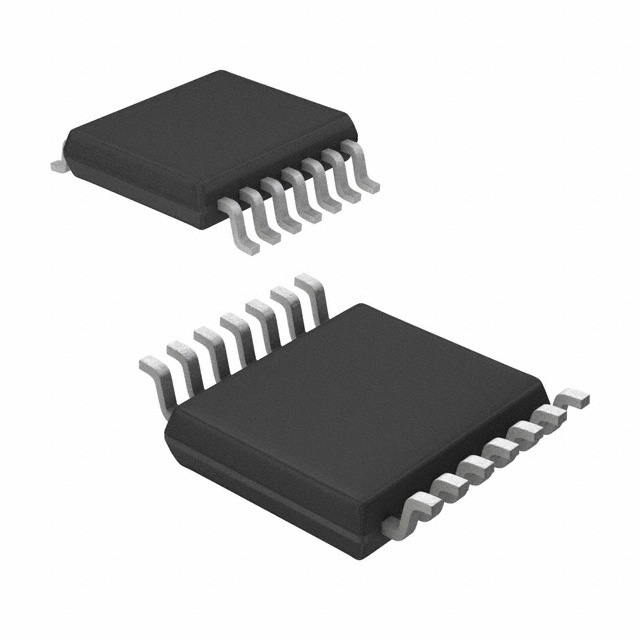

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Standard Package | Rail / Tube |
| Product Category | RF Transceiver |
| RoHS | RoHS Compliant |
| Frequency Range | 433 MHz to 915 MHz |
| Modulation Format | FHSS, FSK |
| Output Power | 7 dBm |
| Type | ISM |
| Operating Supply Voltage | 2.5 V, 3.3 V |
| Maximum Operating Temperature | + 85 C |
| Package / Case | TSSOP-16 |
| Packaging | Tube |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT |
| Number of Receivers | 1 |
| Number of Transmitters | 2 |
| Factory Pack Quantity | 96 |
| Supply Voltage - Max | 3.8 V |
| Supply Voltage - Min | 2.2 V |
| Part # Aliases | 579-MRF49XA-1/ST |
| Standard Package Name | TSSOP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Maximum Operating Supply Voltage | 3.8V |
| Modulation Technique | FSK |
| Package Height | 1 |
| Mounting | Surface Mount |
| Minimum Operating Supply Voltage | 2.2V |
| Typical Operating Supply Voltage | 2.5V|3.3V |
| Maximum RF Operating Frequency | 929.27 |
| Supplier Package | TSSOP |
| Operating Band Frequency | 430.24 to 439.75|860.48 to 879.51... |
| Package Width | 4.4 |
| Screening Level | Industrial |
| PCB | 16 |
| Package Length | 5 |
| Minimum Operating Temperature | -40 |
| Pin Count | 16 |
| Lead Shape | Gull-wing |
| Function | TRANSCEIV. |
| Matchcode | MRF49XA-I/ST |
| P(out) | 7dBm |
| Weight | 0.0337g |
| Datarate | 256kbps |
| Package | 16P TSSOP |
| Unit Pack | 96 |
| Standard Leadtime | 12 weeks |
| MOQ | 1 |
| Leadfree Defin. | RoHS-conform |
| Frequency | 433/868MHz |
| Operat.temp. | -40 +85°C |
| Encryption | NY/N |
| Automotive | NO |
| Supply voltage | 2,2-3,8V |
| Current - Transmitting | 15mA |
| Power - Output | 7dbm |
| Current - Receiving | 11mA |
| Antenna Connector | PCB, Surface Mount |
| Data Interface | PCB, Surface Mount |
| Data Rate - Maximum | 256kbps |
| Applications | Home / Industrial Automation, Remote Access, Security Alarms |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.2 V ~ 3.8 V |
| Sensitivity | -110dBm |
| Modulation or Protocol | FHSS, FSK |
| Other Names | MRF49XAIST |
| Package/Case | 16-TSSOP (0.173", 4.40mm Width) |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Height | 1.05mm |
| Length | 5.1mm |
| Maximum Operating Band 1 Frequency | 439.75MHz |
| Maximum Operating Band 2 Frequency | 879.51MHz |
| Maximum Operating Band 3 Frequency | 929.27MHz |
| Minimum Operating Band 1 Frequency | 430.24MHz |
| Minimum Operating Band 2 Frequency | 860.48MHz |
| Minimum Operating Band 3 Frequency | 900.72MHz |
| Mounting Type | Surface Mount |
| Number of Operating Bands | 1 |
| Package Type | TSSOP |
| Width | 4.5mm |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Industrial |
| Modulation Type | FSK |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 2.5/3.3 V |
| Operating Supply Voltage (Min) | 2.2 V |
| Operating Supply Voltage (Max) | 3.8 V |
| Operating Frequency (Max) | 929270 kHz |
| Operating Band Frequency | 433 to 915 MHz |
| Product Length (mm) | 5 mm |
| Product Depth (mm) | 4.4 mm |
| Product Height (mm) | 1 mm |
| Frequency Min | :430.24MHz |
| Frequency Max | :929.27MHz |
| Receiving Current | :3.4mA |
| Supply Voltage Min | :2.2V |
| Supply Voltage Max | :3.8V |
| RF IC Case Style | :TSSOP |
| No. of Pins | :16 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :49 |
| Frequency Band | :433MHz, 868MHz, 915MHz |
| Network / Frequency Band Type | :ISM |
| Operating Temperature Range | :-40°C to +85°C |
| Supply Voltage Range | :2.2V to 3.8V |
| Termination Type | :SMD |
| Transmitting Current | :28mA |
| Weight (kg) | 0.000175 |
| Tariff No. | 85411000 |
| Data Rate (Max) | 256kbps |
| Case | TSSOP16 |
| Receiver sensitivity | -110dBm |
| Integrated circuit type | transceiver |
| Gross weight | 0.15 g |
| Band | 433/868/915MHz |
| Multiplicity | 1 |
| Interface | 4-wire SPI |
| TX/RX supply current | 15/11mA |
| Network type | RF |
| Collective package [pcs] | 50 |
| spg | 50 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | MRF49XA |
