microchip

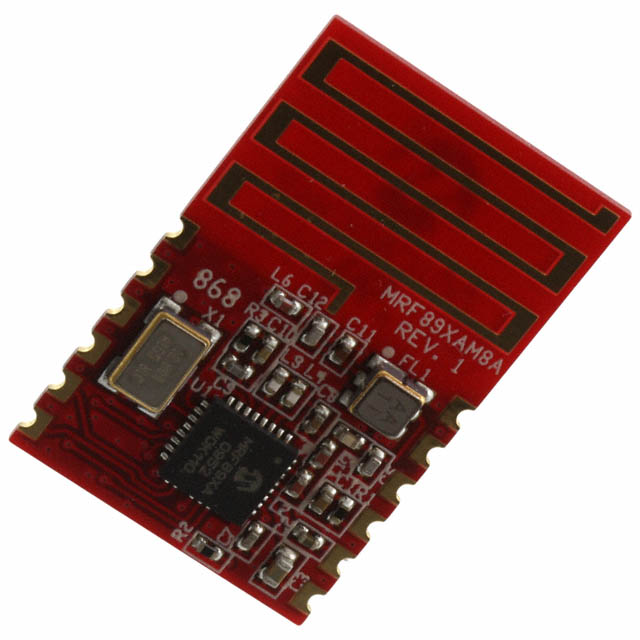

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Standard Package | Trays |
| RoHS | RoHS Compliant |
| Product | Transceiver Modules |
| Frequency Band | 868 MHz |
| Output Power | 12.5 dBm |
| Interface Type | SPI |
| Operating Supply Voltage | 2.1 V to 3.6 V |
| Supply Current Transmitting | 25 mA |
| Supply Current Receiving | 3 mA |
| Antenna Connector Type | PCB |
| Maximum Operating Temperature | + 85 C |
| Dimensions | 17.8 mm x 27.9 mm |
| Minimum Operating Temperature | - 40 C |
| Packaging | Tray |
| Function | TRANSCEIV. |
| Matchcode | MRF89XAM8A-I/RM |
| P(out) | 12.5dBm |
| Datarate | 200kbps |
| Package | MODULE |
| Unit Pack | 54 |
| Standard Leadtime | 12 weeks |
| MOQ | 1 |
| Leadfree Defin. | RoHS-conform |
| Frequency | 868/MHz |
| Operat.temp. | -40 +85°C |
| Encryption | NY/N |
| Automotive | NO |
| Supply voltage | 2,1-3,6V |
| Current - Transmitting | 25mA |
| Power - Output | 10dBm |
| Current - Receiving | 3mA |
| Antenna Connector | On-Board, Trace |
| Data Interface | Solder Pad |
| Data Rate - Maximum | 40kbps |
| Applications | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.1 V ~ 3.6 V |
| Sensitivity | -113dBm |
| Modulation or Protocol | FSK, OOK |
| Other Names | MRF89XAM8AIRM |
| Package/Case | Module |
| rohs | Lead free / RoHS Compliant |
| Height | 0.075in |
| Length | 1.1in |
| Maximum Operating Band 1 Frequency | 870MHz |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Band 1 Frequency | 863MHz |
| Minimum Operating Supply Voltage | 2.1 V |
| Modulation Technique | FSK, OOK |
| Mounting Type | Surface Mount |
| Number of Operating Bands | 1 |
| Package Type | Module |
| Pin Count | 12 |
| Width | 0.7in |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Industrial |
| Modulation Type | FSK/OOK |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 3.3 V |
| Operating Supply Voltage (Min) | 2.1 V |
| Operating Supply Voltage (Max) | 3.6 V |
| Operating Frequency (Max) | 870000 kHz |
| Product Length (mm) | 27.94 mm |
| Product Depth (mm) | 17.78 mm |
| Kit Contents | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.1 |
| Tariff No. | 85423190 |
| Data Rate (Max) | 40kbps |
| Package / Case | Module |
| Case | 12/Module |
| Receiver sensitivity | -113dBm |
| Mounting | SMD |
| Integrated circuit type | transceiver |
| Gross weight | 4.91 g |
| Band | 868MHz |
| Multiplicity | 1 |
| Interface | 3-wire SPI |
| TX/RX supply current | 25/3mA |
| Network type | RF |
| Collective package [pcs] | 54 |
| spg | 54 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | MRF89XAMxA User Guide |
| Datasheets | MRF89XAM8A |
| Datasheets | MRF87XAMxA Info Sheet |
