Manufacturer Part Number:

SST12CP11-QVCE

OneIC Part Number:

260-SST12CP11-QVCE

Manufacturer:

microchip

Description:

RF Amp Chip Single Gain Amp 2.5GHz 16-Pin VQFN EP

Customer Reference:

Datasheet:

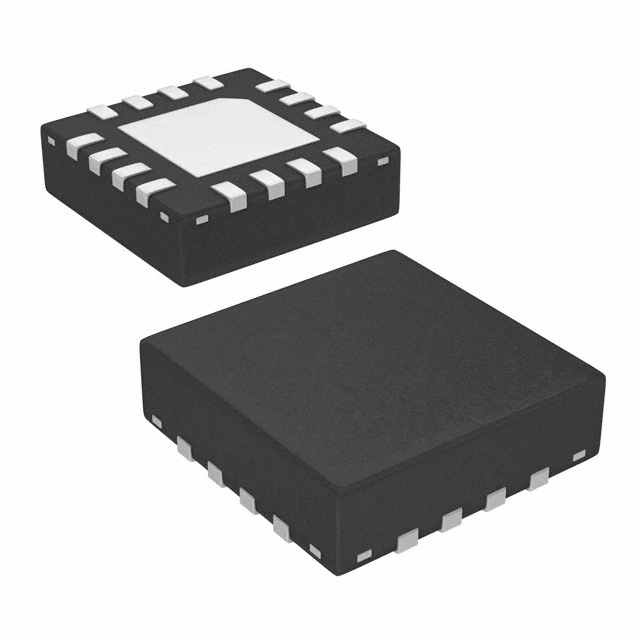

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	16VQFN EP
Number of Channels per Chip	1
Type	Gain Amplifier
Typical Power Gain	34@2500MHz dB
Maximum Operating Frequency Range	2000 to 3000 MHz
Standard Package	Tape & Reel
RoHS	RoHS Compliant
Operating Supply Voltage	5 V
Packaging	Reel
Unit Pack	3000
MOQ	3000
Supplier Device Package	16-VQFN (3x3)
RF Type	802.11 g/n
Frequency	2.4GHz ~ 2.5GHz
Package/Case	16-VQFN
rohs	Lead free / RoHS Compliant
Other Names	SST12CP11-QVCECT
Amplifier Type	Power
Dimensions	3 x 3 x 0.9mm
Height	0.9mm
Length	3mm
Maximum Operating Frequency	2.5 GHz
Maximum Operating Supply Voltage	5 V
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Package Type	VQFN
Pin Count	16
Typical Output Power	25.5dBm
Width	3mm
Mounting	Surface Mount
Number of Channels	1
Rad Hardened	No
Manufacturer's Type	Gain Amplifier
Frequency Min	:2.4GHz
Frequency Max	:2.5GHz
Gain	:34dB
RF IC Case Style	:QFN
No. of Pins	:16
Operating Temperature Min	:0°C
Operating Temperature Max	:70°C
MSL	:MSL 1 - Unlimited
SVHC	:No SVHC (16-Dec-2013)
Frequency Range	:2.4GHz to 2.5GHz
Operating Temperature Range	:0°C to +70°C
Weight (kg)	0.0002
Tariff No.	85423300
Case	QFN16
Integrated circuit type	power amplifier
Transmission band frequency	2.4GHz
Gross weight	0.22 g
Operating temperature	-40...85°C
Number of channels	1
Supply voltage	3...5V DC
Multiplicity	10
Collective package [pcs]	50
spg	50

Documents & Media

RESOURCE TYPE	LINK
Datasheets	SST12CP11 Brief
Datasheets	SST12CP11 Datasheet
Datasheets	8-Bit Microcontrollers
