Microchip Technology

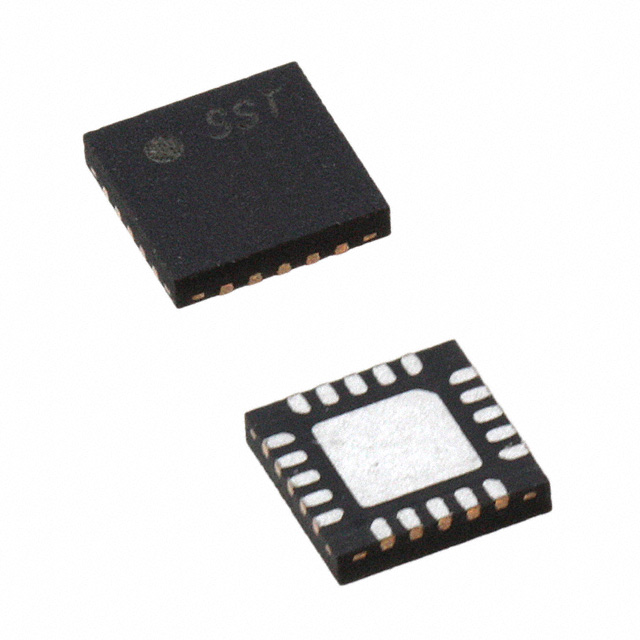

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Supplier Package | UQFN |
| Standard Package Name | QFN |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Package Height | 0.55 |
| Mounting | Surface Mount |
| Typical Noise Figure | 3.1 |
| Typical Power Gain | 12|28 |
| Packaging | Tape and Reel |
| Package Width | 3 |
| PCB | 20 |
| Package Length | 3 |
| Minimum Operating Temperature | -25 |
| Frequency Range | 2400 to 2500 |
| Pin Count | 20 |
| Structure | LNA/PA |
| Lead Shape | No Lead |
| Unit Pack | 3000 |
| MOQ | 3000 |
| Supplier Device Package | 20-UQFN (3x3) |
| RF Type | Bluetooth, Zigbee |
| Frequency | 2.4GHz |
| Standard Package | 3,000 |
| Package/Case | 20-UFQFN Exposed Pad |
| rohs | Lead free / RoHS Compliant |
| Other Names | SST12LF03-Q3DECT |
| Amplifier Type | Low Noise, Low Power |
| Dimensions | 3 x 3 x 0.55mm |
| Height | 0.55mm |
| Length | 3mm |
| Maximum Operating Frequency | 2.5 GHz |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Number of Channels per Chip | 1 |
| Package Type | UQFN |
| Typical Output Power | 22dBm |
| Typical Power Gain | 28 dB |
| Width | 3mm |
| 频率 | 2.4GHz |
| 频率类型 | Bluetooth, Zigbee |
| 封装/外壳 | 20-UFQFN Exposed Pad |
| 放大器类型 | 低噪声、低功耗 |
| 最高工作频率 | 2.5 GHz |
| 最高工作温度 | +85 °C |
| 安装类型 | 表面贴装 |
| 引脚数目 | 20 |
| 高度 | 0.55mm |
| 最低工作温度 | -40 °C |
| 最小工作电源电压 | 3 V |
| 典型输出功率 | 22dBm |
| 宽度 | 3mm |
| 封装类型 | UQFN |
| 最大工作电源电压 | 3.6 V |
| 长度 | 3mm |
| 每片芯片通道数目 | 1 |
| 尺寸 | 3 x 3 x 0.55mm |
| 典型功率增益 | 28 dB |
| Type | 802.11 b/g/n, WLAN |
| Brand | Microchip Technology |
| Mounting Style | SMD/SMT |
| NF - Noise Figure | 3.1 dB |
| Package / Case | uQFN-20 |
| Operating Frequency | 2.4 GHz to 2.5 GHz |
| RoHS | RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | SST12LF03 Brief |
| Datasheets | SST12LF03 |
