Manufacturer Part Number:

SST12LP17E-QU8E

OneIC Part Number:

260-SST12LP17E-QU8E

Manufacturer:

microchip

Description:

RF Amp Chip Single Power Amp 2.5GHz 4.2V 8-Pin USON

Customer Reference:

Datasheet:

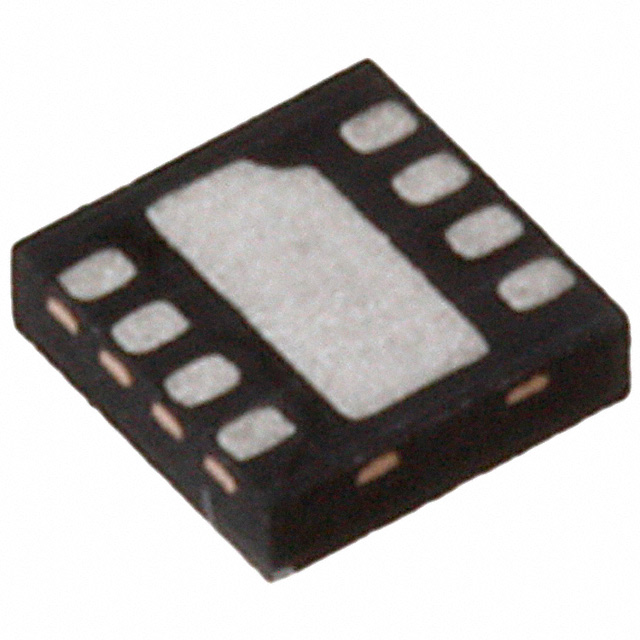

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	8USON
Number of Channels per Chip	1
Type	Power Amplifier
Typical Power Gain	29@2500MHz dB
Maximum Operating Frequency Range	2000 to 3000 MHz
Typical Single Supply Voltage	3.3 V
Standard Package	Tape & Reel
RoHS	RoHS Compliant
Operating Frequency	2.4 GHz to 2.5 GHz
P1dB	24 dBm
Power Gain Typ	28 dB
Operating Supply Voltage	3.3 V
Supply Current	155 mA
Test Frequency	2.4 GHz
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	SON-8
Packaging	Reel
Minimum Operating Temperature	- 40 C
Unit Pack	3000
MOQ	3000
Supplier Device Package	8-uDFN (2x2)
RF Type	802.11b/g/n
Voltage - Supply	3.3V
Gain	29dB
Frequency	2.4GHz ~ 2.5GHz
Package/Case	8-UDFN
rohs	Lead free / RoHS Compliant
Other Names	SST12LP17E-QU8ECT
Amplifier Type	Power
Dimensions	2 x 2 x 0.55mm
Height	0.55mm
Length	2mm
Maximum Operating Frequency	2.5 GHz
Maximum Operating Supply Voltage	3.3 V
Mounting Type	Surface Mount
Package Type	USON
Pin Count	8
Typical Output Power	18dBm
Width	2mm
Frequency Min	:2.4GHz
Frequency Max	:2.5GHz
RF IC Case Style	:DFN
No. of Pins	:8
Operating Temperature Min	:0°C
Operating Temperature Max	:70°C
MSL	:MSL 1 - Unlimited
SVHC	:No SVHC (20-Jun-2013)
Frequency Range	:2.4GHz to 2.5GHz
Operating Temperature Range	:0°C to +70°C
Weight (kg)	0.00005
Tariff No.	85423990

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Product Selection Guide
Datasheets	SST12LP17E
Datasheets	SST12LP17E Datasheet
