Panasonic Electric Works

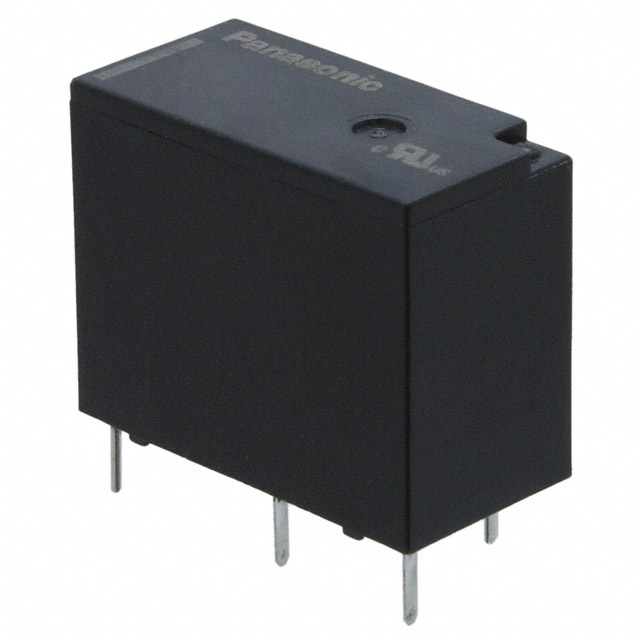

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Coil Current | 80mA |
| Coil Voltage | 5VDC |
| Turn On Voltage (Max) | 3.75 VDC |
| Features | Insulation - Class B |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 0.25 VDC |
| Coil Power | 400 mW |
| Contact Form | SPDT (1 Form C) |
| Relay Type | General Purpose |
| Termination Style | PC Pin |
| Switching Voltage | 250VAC - Max |
| Release Time | 20ms |
| Packaging | Tube |
| Operating Temperature | -40°C ~ 85°C |
| Operate Time | 20ms |
| Contact Rating (Current) | 10A |
| Standard Package | 100 |
| Mounting Type | Through Hole |
| Contact Material | Silver Nickel (AgNi) |
| Other Names | 255-3565 |
| Coil Resistance | 62.5 Ohms |
| Mounting Style | Through Hole |
| Contact Current Rating | 10 A |
| Series | ALQ |
| Coil Termination | Solder Terminal |
| Power Consumption | 400 mW |
| Contact Termination | Solder Terminal |
| RoHS | RoHS Compliant By Exemption |
| 导通电压（最大值） | 3.75 VDC |
| 关闭电压（最小值） | 0.25 VDC |
| 系列 | ALQ |
| 继电器类型 | General Purpose |
| 开关电压 | 250VAC - Max |
| 额定接触（电流） | 10A |
| 线圈电压 | 5VDC |
| 释放时间 | 20ms |
| 线圈类型 | Non Latching |
| 接触点外形 | SPDT (1 Form C) |
| 线圈电流 | 80mA |
| 工作时间 | 20ms |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | ALQ (LQ) Series New Prod Intro |
| Datasheets | LQ Relays (ALQ) |
