Manufacturer Part Number:

AMN12111

OneIC Part Number:

282-AMN12111

Manufacturer:

Panasonic Electric Works

Description:

Board Mount Motion & Position Sensors 5 VDC SENSOR BLACK DIGITAL

Customer Reference:

Datasheet:

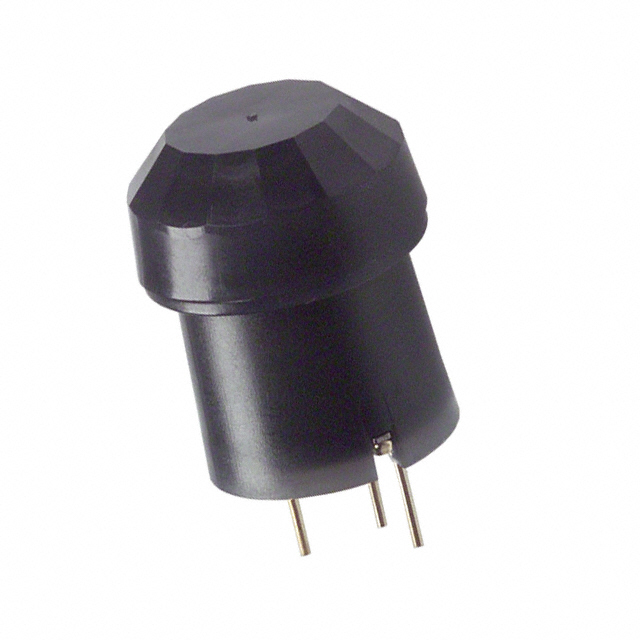

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
EU RoHS	Compliant
Maximum Operating Temperature	60
Output Type	Digital
Viewing Angle	100/82
Sensing Distance	5
Maximum Operating Supply Voltage	6
Minimum Operating Temperature	-20
Minimum Operating Supply Voltage	3
Pin Count	3
Sensor Type	Motion, Pyroelectric, PIR (Passive Infrared)
Features	Polyethylene, Black Lens
Sensing Distance	78.7" (2m) 6.6'
Standard Package	50
Trigger Type	Internal
Voltage - Supply	3 V ~ 6 V
Detection Pattern	Slight
rohs	Lead free / RoHS Compliant
Detector Type	PIR Motion Detector
Diameter	12.7mm
Height	15.2 mm
Sensor Radius	2m
Factory Pack Quantity	50
Product Category	Board Mount Motion & Position Sensors
Output Current	100 uA
Supply Current	46 uA
Packaging	Bulk
Mounting Style	Through Hole
Minimum Operating Temperature	- 20 C
Package / Case	TO-5
Supply Voltage - Max	6 V
Supply Voltage - Min	3 V
Maximum Operating Temperature	+ 60 C
RoHS	RoHS Compliant By Exemption
SVHC	:No SVHC (20-Jun-2013)
Colour	:Black
Operating Temperature Max	:60°C
Operating Temperature Min	:-20°C
Series	:MP
Supply Voltage Max	:6VDC
Supply Voltage Min	:3VDC
Weight (kg)	0.002
Tariff No.	85365080

Documents & Media

RESOURCE TYPE	LINK
Datasheets	AMN Design Manual
Datasheets	MP Motion Sensor (AMN2-4)
