Manufacturer Part Number:

AMN24111

OneIC Part Number:

282-AMN24111

Manufacturer:

Panasonic Electric Works

Description:

Board Mount Motion & Position Sensors 5VDC MOTION SENSOR BLACK ANALOG 10M PCB

Customer Reference:

Datasheet:

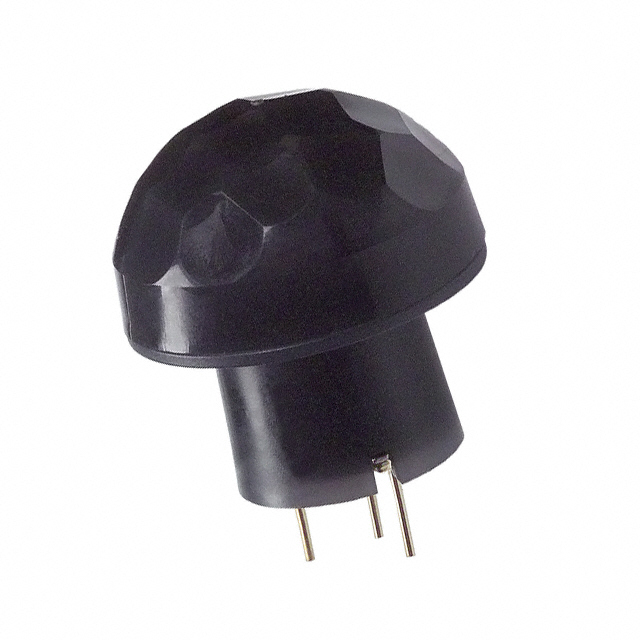

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Sensor Type	Motion, Pyroelectric, PIR (Passive Infrared)
Features	Polyethylene, Black Lens
Output Type	Analog
Sensing Distance	393.7" (10m) 32.8'
Standard Package	50
Trigger Type	Internal
Voltage - Supply	4.5 V ~ 5.5 V
Detection Pattern	10m
Factory Pack Quantity	50
Product Category	Board Mount Motion & Position Sensors
Supply Current	170 uA
Packaging	Bulk
Mounting Style	Through Hole
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 20 C
Supply Voltage - Min	4.5 V
Maximum Operating Temperature	+ 60 C
RoHS	RoHS Compliant By Exemption
传感器类型	Motion, Pyroelectric, PIR (Passive Infrared)
系列	NaPiOn™
触发器类型	Internal
电压 - 电源	4.5 V ~ 5.5 V
感应距离	393.7" (10m) 32.8'
特性	Polyethylene, Black Lens
输出类型	Analog

Documents & Media

RESOURCE TYPE	LINK
Datasheets	AMN Design Manual
Datasheets	MP Motion Sensor (AMN2-4)
