Panasonic Electric Works

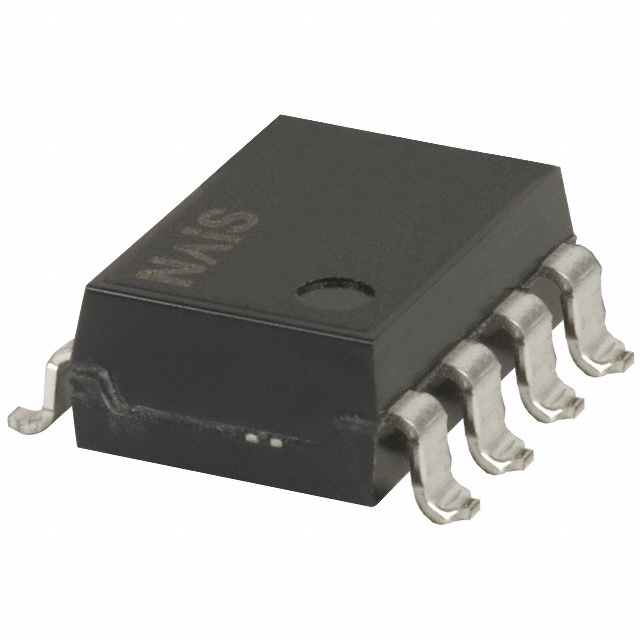

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant |
| Control Voltage Range | 6 V |
| Load Voltage Rating | 600 VAC |
| Load Current Rating | 1.2 A |
| Contact Form | 1 Form A (SPST-NO) |
| Output Device | Photo Triac |
| Package / Case | DIP-8 |
| Mounting Style | SMD/SMT |
| Input to Output Isolation Method | Optically Coupled Circuit |
| Packaging | Tube |
| Product Type | PCB Mount |
| Factory Pack Quantity | 40 |
| Termination Style | Solder Pad |
| Supplier Package | PDIP SMD |
| Standard Package Name | PDIP SMD |
| EU RoHS | Compliant |
| I/O Isolation Voltage | 5000 |
| Maximum Output Voltage | 600 |
| Maximum Input Current | 50 |
| Output Type | AC |
| Maximum Output Current | 1.2(RMS) |
| Peak Non-Repetitive Surge Current | 12 |
| Input Type | DC |
| Maximum Turn-On Time | 0.1 |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -30 |
| Maximum Input Voltage | 1.3 |
| Pin Count | 7 |
| Lead Shape | Gull-wing |
| Relay Type | Relay |
| Mounting Type | Surface Mount |
| Load Current | 1.2A |
| Voltage - Load | 0 ~ 600 V |
| Supplier Device Package | 8-SMD |
| Circuit | SPST-NO (1 Form A) |
| Standard Package | 50 |
| Voltage - Input | 1.18VDC |
| Other Names | 255-2663 |
| Package/Case | 8-SMD (0.300", 7.62mm) 7 Leads |
| rohs | Lead free / RoHS Compliant |
| 电压 - 负载 | 0 ~ 600 V |
| 系列 | AQ-H |
| 继电器类型 | Relay |
| 电路 | SPST-NO (1 Form A) |
| 电压 - 输入 | 1.18VDC |
| 封装/外壳 | 8-SMD (0.300", 7.62mm) 7 Leads |
| 输出类型 | AC |
| 负载电流 | 1.2A |
| Dimensions L x W x H | 9.78 x 6.4 x 3.4 mm |
| Output current | 1.2 |
| Test voltage | 5 |
| Input voltage | 1.18...2.5 VDC |
| Design | SMD 8PIN |
| Output voltage | 12...600 VAC |
| Temperature range | -30...+85 °C |
| Switching type | Instantaneous |
| Brand | Panasonic Industrial Devices |
| Height | 3.4 mm |
| Length | 9.78 mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | AQ-H Relays |
