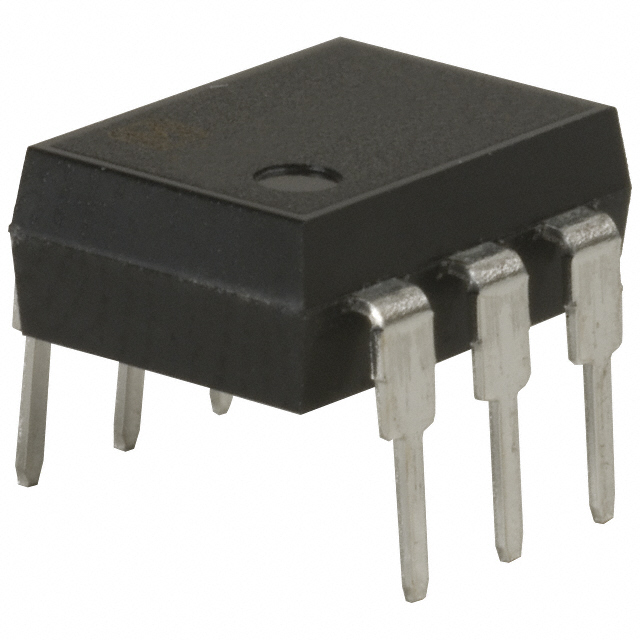

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant By Exemption |
| Control Voltage Range | 1.5 V to 5 V |
| Load Voltage Rating | 350 V |
| Load Current Rating | 130 mA |
| Contact Form | 1 Form A (SPST-NO) |
| Output Device | MOSFET |
| Package / Case | DIP-6 |
| Mounting Style | Through Hole |
| Input to Output Isolation Method | Photocoupler |
| On Resistance (Max) | 23 Ohms |
| Packaging | Bulk |
| Product Type | PCB Mount |
| Factory Pack Quantity | 50 |
| Termination Style | Solder Pin |
| Package Width | 6.4 |
| Mounting | Through Hole |
| Maximum Off-State Leakage Current | 1 |
| Input Type | DC |
| PCB | 6 |
| EU RoHS | Compliant |
| Maximum Turn-Off Time | 1 |
| Maximum Input Current | 50 |
| Output Type | AC|DC |
| Maximum Output Voltage | 350 |
| Minimum Operating Temperature | -40 |
| Supplier Package | DIP |
| Standard Package Name | DIP |
| Maximum Operating Temperature | 85 |
| Package Length | 8.8 |
| Pin Count | 6 |
| I/O Isolation Voltage | 1500 |
| Circuit Arrangement | 1 Form A |
| Package Height | 3.9 |
| Maximum Output Current | 0.13 |
| Maximum Turn-On Time | 2 |
| Maximum Input Voltage | 1.5 |
| Lead Shape | Through Hole |
| Relay Type | Relay |
| Mounting Type | Through Hole |
| Load Current | 130mA |
| Voltage - Load | 0 ~ 350 V |
| Supplier Device Package | 6-DIP |
| On-State Resistance | 35 Ohm |
| Circuit | SPST-NO (1 Form A) |
| Standard Package | 50 |
| Voltage - Input | 1.14VDC |
| Package/Case | 6-DIP (0.300", 7.62mm) |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | SPST-NO |
| Depth | 6.4mm |
| Height | 3.9mm |
| Length | 8.8mm |
| Maximum Control Voltage | 1.5 V |
| Maximum Load Current | 130 mA |
| Maximum Load Voltage | 350 V |
| Maximum Turn On Time | 2 ms |
| Minimum Control Voltage | 1.14 V |
| Off State Leakage Current | 1μA |
| Package Style | DIP6 |
| Terminal Type | Through Hole |
| On Resistance - Max | 23 Ohms |
| Input Current | 50 mA |
| Application | Forhighspeedinspectionmachines,telephoneequipment,datacommunicationequipment,computer |
| Capacitance,Output | 45pF(Typ.)@1MHz |
| ContactForm | SPST-NO |
| CurrentRating | 130A |
| Current,Rating | 130mA |
| Function | GeneralPurpose |
| MountingType | PCB |
| NumberofPins | 6 |
| PackageType | Tube |
| RelayType | SolidState |
| Resistance,On-State | 23Ohms(Typ.)@5mA |
| Standards | cULus |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Operating,Minimum | -40°C |
| Termination | ThroughHole |
| Voltage,Rating | 350VAC/VDC |
| 电压 - 负载 | 0 ~ 350 V |
| 导通电阻 | 35 Ohm |
| 系列 | PhotoMOS™ AQV |
| 继电器类型 | Relay |
| 电路 | SPST-NO (1 Form A) |
| 电压 - 输入 | 1.14VDC |
| 封装/外壳 | 6-DIP (0.300", 7.62mm) |
| 输出类型 | AC, DC |
| 负载电流 | 130mA |
| 关断漏电流 | 1 μA |
| 输出设备 | MOS 照片 |
| 最大负载电压 | 350 V |
| 控制电压范围 | 1.14 → 1.5 V |
| 安装类型 | PCB（印刷电路板）安装 |
| 最小控制电压 | 1.14 V |
| 端子类型 | 通孔 |
| 高度 | 3.9mm |
| 触点配置 | 单极常开 |
| 包装样式 | DIP6 |
| 工作温度范围 | -40 → +85°C |
| 最大控制电压 | 1.5 V |
| 最大负载电流 | 130 mA |
| 尺寸 | 8.8 x 6.4 x 3.9mm |
| 深度 | 6.4mm |
| 长度 | 8.8mm |
| 最大接通时间 | 2 ms |
