Panasonic Electric Works

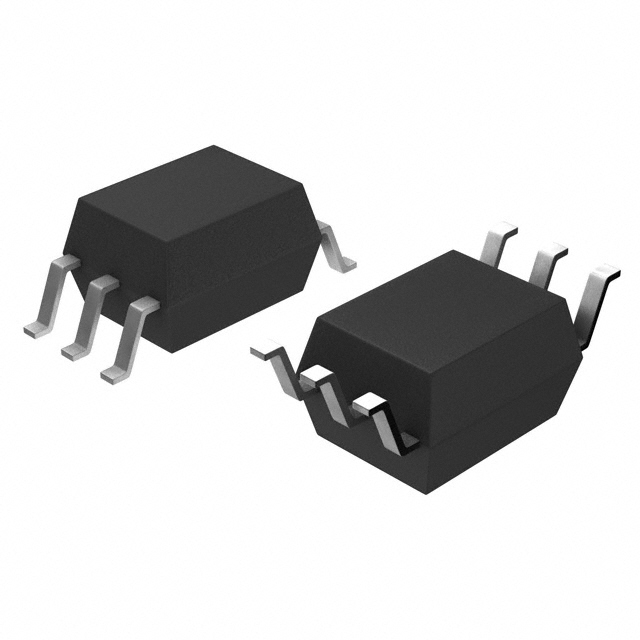

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant |
| Control Voltage Range | 1.5 V to 5 V |
| Load Voltage Rating | 400 V |
| Load Current Rating | 100 mA |
| Contact Form | 1 Form A (SPST-NO) |
| Output Device | MOSFET |
| Package / Case | SOP-6 |
| Mounting Style | SMD/SMT |
| Input to Output Isolation Method | Photocoupler |
| Packaging | Reel |
| Product Type | PCB Mount |
| Factory Pack Quantity | 1000 |
| Termination Style | Solder Pad |
| Package Width | 4.4 |
| Mounting | Surface Mount |
| Maximum Off-State Leakage Current | 1 |
| Input Type | DC |
| PCB | 6 |
| EU RoHS | Compliant |
| Maximum Turn-Off Time | 0.2 |
| Maximum Input Current | 50 |
| Output Type | AC|DC |
| Maximum Output Voltage | 400 |
| Minimum Operating Temperature | -40 |
| Supplier Package | SOP |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 85 |
| Package Length | 6.3 |
| Pin Count | 6 |
| I/O Isolation Voltage | 1500 |
| Circuit Arrangement | 1 Form A |
| Package Height | 2.1 |
| Maximum Output Current | 0.1 |
| Maximum Turn-On Time | 0.5 |
| Maximum Input Voltage | 1.5 |
| Lead Shape | Gull-wing |
| Relay Type | Relay |
| Mounting Type | Surface Mount |
| Load Current | 100mA |
| Voltage - Load | 0 ~ 400 V |
| Supplier Device Package | 6-SOP |
| On-State Resistance | 50 Ohm |
| Circuit | SPST-NO (1 Form A) |
| Standard Package | 1,000 |
| Voltage - Input | 1.14VDC |
| Package/Case | 6-SOP (0.173", 4.40mm) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 255-2113-1 |
| Input Current | 50 mA |
| Operating Temp Range | -40C to 85C |
| Package Type | SOP |
| Operating Temperature Classification | Industrial |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 400 V |
| Input Current (Max) | 50 mA |
| Isolation Voltage | 1500 V |
| Output Current | 100 mA |
| Rad Hardened | No |
| Input Voltage | 1.5 V |
| Load Voltage Max | :400V |
| On State Resistance Max | :50ohm |
| Contact Configuration | :SPST-NO |
| Forward Current If | :700µA |
| Relay Terminals | :SMD |
| Weight (kg) | 0.00001 |
| Tariff No. | 85364110 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | PhotoMOS Dimensions |
| Datasheets | AQV21xS |
