Panasonic Electric Works

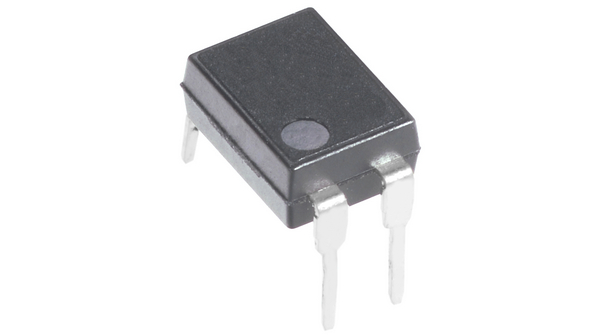

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Control Voltage Range | 1.5 V to 5 V |
| Load Voltage Rating | 600 V |
| Load Current Rating | 50 mA |
| Contact Form | 1 Form A (SPST-NO) |
| Output Device | MOSFET |
| Package / Case | DIP-4 |
| Mounting Style | Through Hole |
| Input to Output Isolation Method | Photocoupler |
| Packaging | Tube |
| Product Type | PCB Mount |
| Termination Style | Solder Pin |
| Relay Type | Relay |
| Mounting Type | Through Hole |
| Load Current | 50mA |
| Voltage - Load | 0 ~ 600 V |
| Supplier Device Package | 4-DIP |
| Output Type | AC, DC |
| On-State Resistance | 120 Ohm |
| Circuit | SPST-NO (1 Form A) |
| Standard Package | 100 |
| Voltage - Input | 1.14VDC |
| Package/Case | 4-DIP (0.300", 7.62mm) |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | SPST-NO |
| Depth | 6.4mm |
| Height | 3.2mm |
| Length | 4.78mm |
| Maximum Control Voltage | 1.5 V |
| Maximum Load Current | 50 mA |
| Maximum Load Voltage | 600 V |
| Maximum Turn On Time | 2 ms |
| Minimum Control Voltage | 1.14 V |
| Minimum Load Current | 0.05 A |
| Off State Leakage Current | 1 μA |
| Package Style | DIP4 |
| Terminal Type | Through Hole |
| Input Current | 50 mA |
| Contact resistance | 52 |
| Switching voltage | 600 |
| Switched current | 50 |
| Contacts | 1 make contact (NO) |
| Test voltage | 5 |
| Design | DIL4 |
| Temperature range | -40...+85 °C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | AQY21xEH |
