Manufacturer Part Number:

CR-2354/GUN

OneIC Part Number:

282-CR-2354-GUN

Manufacturer:

Panasonic

Description:

Coin 560mAh Primary

Customer Reference:

Datasheet:

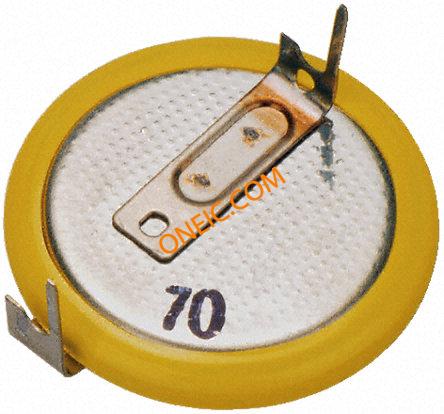

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
EU RoHS	RoHS Not Applicable
Non-Rechargeable/Rechargeable	Non-Rechargeable
Package Height	6
Mounting	Through Hole
Package Diameter	23
Memory Effect	No
Number of Cells	1
Capacity	0.56
Shape	Coin
PCB	2
Battery Type	Primary
Pin Count	2
Capacity	560mAh
Voltage - Rated	3V
Discharge Rate	200µA
Termination Style	PC Pin (Horizontal Mount)
Size / Dimension	0.91" Dia x 0.21" H (23.0mm x 5.4mm)
Battery Cell Size	Coin, 23.0mm
Battery Chemistry	Lithium
Standard Package	200
Shipping Info	Due to possible restrictions, a change in ship method may be required.
rohs	Lead free / RoHS compliant by exemption
Chemistry	Lithium Manganese Dioxide
Diameter	23mm
Dimensions	23 x 5.4mm
Maximum Continuous Current	0.2mA
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-30°C
Mounting Orientation	Horizontal
Nominal Voltage	3V
Operating Temperature Range	-30 → +60°C
Size	CR2354
Terminal Type	PCB Pin
Typical Application	Calculators, Cameras, Electronic Translators, General Purpose, Memory Backup, Watches
Factory Pack Quantity	200
Product Category	Coin Cell Battery
Battery Size	CR2354
Rechargeable/Non-Rechargeable	Non-Rechargeable
Output Voltage	3 V
Part # Aliases	CR-2354/GUN CR2354-1GUE CR2354/1GU,
Type	Coin Cell Battery
RoHS	Not Applicable
Battery Size Code	:2354
Battery Capacity	:500mAh
Battery Voltage	:3V
Battery Technology	:Lithium Manganese Dioxide
Battery Terminals	:PCB Pins
External Diameter	:23mm
External Height	:5.4mm
External Width	:23mm
External Depth	:5.4mm
Weight	:5.9g
Battery IEC Code	:CR2354
Battery NEDA Code	:-
Body Diameter	:23mm
Depth	:5.4mm
Pack Quantity	:1
UN Hazard Code	3090
Weight (kg)	0.0059
Tariff No.	85065090

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Tab Configuration
Datasheets	CR-2354/GUN
