Panasonic Electric Works

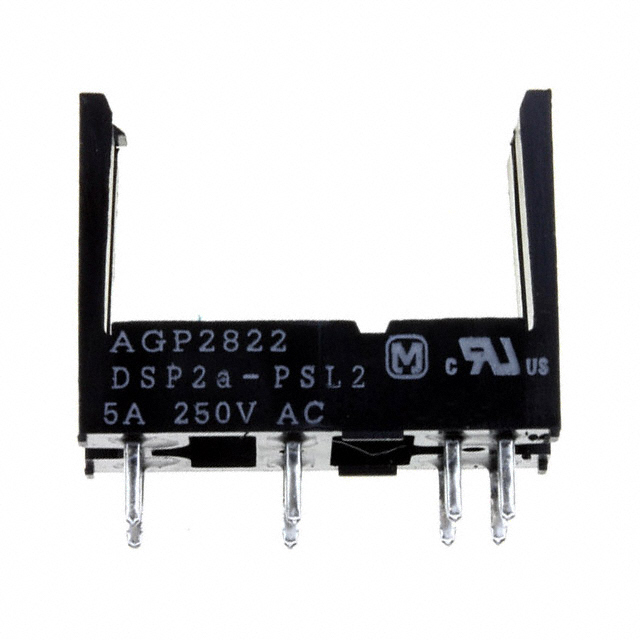

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Relay Sockets & Hardware |
| RoHS | RoHS Compliant By Exemption |
| Accessory Type | Sockets |
| Associated Relay Series | DSP |
| Termination Style | Solder Pin |
| Packaging | Bulk |
| Factory Pack Quantity | 50 |
| Product Length | 23 |
| EU RoHS | Compliant |
| Insulation Resistance | 1000 |
| Product Depth | 11 |
| Gender | SKT |
| Body Orientation | Straight |
| Termination Method | Solder |
| Product Height | 13.3 |
| Number of Contacts | 8 |
| Number of Rows | 2 |
| Mounting | Through Hole |
| Maximum Current Rating | 8 |
| Type | Relay Socket |
| Mounting Type | Through Hole |
| For Use With/Related Products | DSP2A-L2 and DSP1-L2 Relays |
| Standard Package | 50 |
| Number of Positions | 8 |
| rohs | Lead free / RoHS Compliant |
| Rad Hardened | No |
| Insulation Resistance | 1000 Mohm |
| Mounting Style | Through Hole |
| Number of Contact Rows | 2 |
| Grid Size | Not Required |
| Current Rating | 8 A |
| Product Length (mm) | 23 mm |
| Product Depth (mm) | 11 mm |
| Product Height (mm) | 13.3 mm |
| Socket Mounting | :Through Hole |
| Socket Terminals | :Quick Connect |
| Voltage Rating | :3kV |
| No. of Pins | :8 |
| SVHC | :No SVHC (20-Jun-2013) |
| Colour | :Black |
| External Depth | :11mm |
| External Length / Height | :17mm |
| External Width | :23mm |
| For Use With | :DSP1a, DSP1 and DSP2a Series Relays |
| Height | :17mm |
| RMS Current (Irms) | :5A |
| Terminal Type | :Through Hole |
| Voltage Rating V AC | :3000V |
| Weight (kg) | 0.002 |
| Tariff No. | 85366990 |
| CurrentRating | 5A |
| ForUseWith | DSP1A,DSP1A-L2,DSP1,DSP1-L2,DSP2A,DSP2A-L2seriesrelays |
| Length | 23mm |
| MountingType | PCBMount |
| NumberofContacts | 8 |
| Resistance,Insulation | 1000Megohms(BetweenTerminals) |
| Termination | PCBPins |
| Voltage,Breakdown | 3000V(RMS) |
| Width | 11mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | DSP Relays |
