panasonic

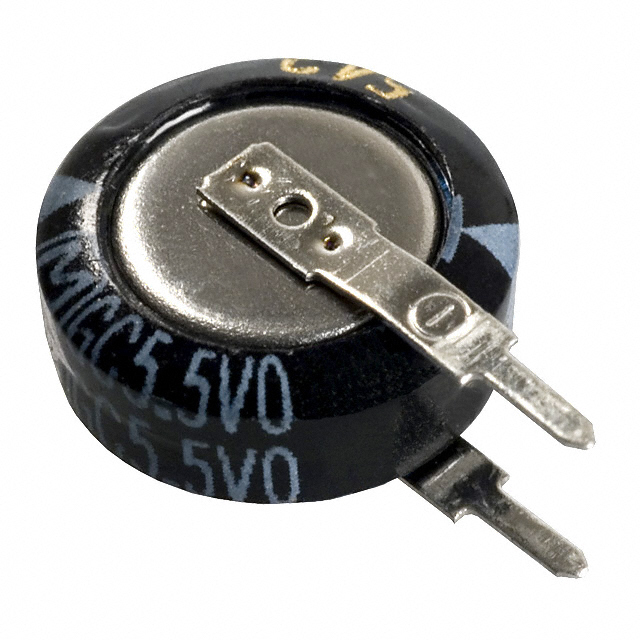

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package/Case | 10.5(Max) X 5(Max) X 11.5(Max) |
| Mounting | Through Hole |
| Capacitance Value | 0.22 F |
| Voltage | 5.5 Vdc |
| Product Depth | 5(Max) mm |
| Product Diameter | 10.5(Max) mm |
| Lead Pitch For Radial | 5 mm |
| Operating Temperature | -25 to 70 °C |
| Construction | Stacked Coin |
| Termination Style | Radial |
| Tolerance | -20 to 80 % |
| Standard Package | Bulk |
| Product Category | Supercapacitors / Ultracapacitors |
| RoHS | RoHS Compliant |
| Capacitance | 0.22 Farad |
| Voltage Rating | 5.5 V |
| Operating Temperature Range | - 25 C to + 70 C |
| Lead Spacing | 5 mm |
| Dimensions | 10.5 mm Dia. x 5 mm W x 11.5 mm L x 11.5 mm H |
| Capacitance - uF | 220000 uF |
| Case Diameter | 10.5 mm |
| Case Height | 11.5 mm |
| Case Length | 11.5 mm |
| Case Width | 5 mm |
| Packaging | Bulk |
| Product | Supercapacitors |
| Factory Pack Quantity | 200 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Product Diameter | 10.5(Max) |
| Product Depth | 5(Max) |
| Lifetime | 1000 |
| Product Height | 11.5(Max) |
| Lead Pitch For Radial | 5 |
| Industry Aliases | EECS0HD 224V |
| Subcategory | Capacitor Electric Double Layer |
| Lead Time | 98 Days |
| rohs | Lead free / RoHS Compliant |
| Series | SD |
| Operating Temp Range | -25C to 70C |
| Rad Hardened | No |
| Tolerance (+ or -) | -20% to 80% |
| Lead Spacing (nom) | 5 mm |
| Mounting Style | Through Hole |
| Lifetime | 1000 hr |
| Package / Case | Not Required |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | 5 mm |
| Product Height (mm) | 11.5 mm |
| Product Diameter (mm) | 10.5 mm |
| Brand/Series | SD Series |
| Case Size | 10.5 mm Dia. x 5 mm L |
| Material, Element | Electric Double Layer |
| Special Features | Supercapacitors and Ultracapacitors |
| Temperature, Operating, Maximum | 70 °C |
| Temperature, Operating, Minimum | –25 °C |
| Termination | Radial, Vertical Terminal |
| Voltage, Rating | 5.5 VDC |
| 电容 | 220mF |
| 引线间距 | 0.197" (5.00mm) |
| 容差 | -20%, +80% |
| 电压 - 额定 | 5.5V |
| 操作温度 | -25°C ~ 70°C |
| ESR（等效串联电阻） | 75 Ohm |
| 封装/外壳 | Axial, Can - Vertical |
| 大小/尺寸 | 0.413" Dia (10.50mm) |
| 不同温度时的使用寿命 | 1000 Hrs @ 70°C |
| 系列 | SD |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | EEC-S0HD224V View All Specifications |
