Alpha Wire

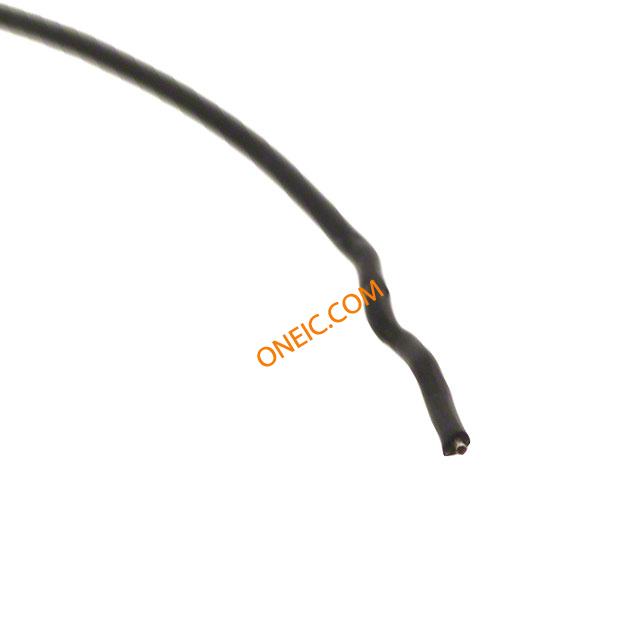

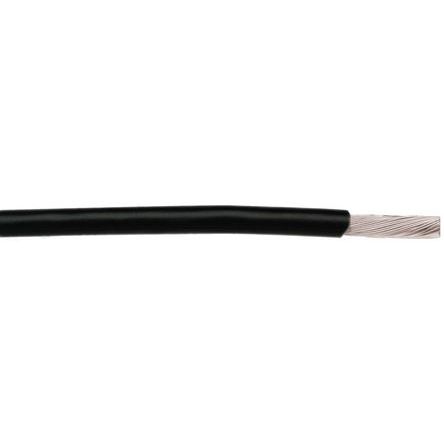

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Hook-up Wire |
| RoHS | RoHS Compliant |
| Stranding | Solid |
| Voltage Rating | 250 V |
| Length | 100 ft |
| Wire Gauge - AWG | 30 |
| Insulation Material | Polytetrafluoroethylene (PTFE) |
| Maximum Temperature | + 200 C |
| Type | MIL-DTL-16878/6 (Type ET) |
| Jacket Color | Black |
| Series | 2841/1 |
| Features | High reliability |
| Outside Diameter | 0.61 mm |
| Packaging | Spool |
| Wire Type | Hook-Up/Lead Wire |
| Jacket (Insulation) Thickness | 0.006" (0.15mm) |
| Jacket (Insulation) Diameter | 0.022" (0.55mm) |
| Wire Gauge | 30 AWG |
| Cable Type | Hook Up |
| Conductor Strand | Solid |
| Conductor Material | Copper, Silver Coated |
| Jacket (Insulation) Material | Polytetrafluoroethylene (PTFE) |
| Voltage | 250V |
| Standard Package | 1 |
| Operating Temperature | -60°C ~ 200°C |
| rohs | Lead free / RoHS Compliant |
| Unit Weight | 1.600000 oz |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| Conductor Size AWG | :30AWG |
| Conductor Area CSA | :0.051mm² |
| Jacket Colour | :Black |
| Jacket Material | :PTFE (Polytetrafluoroethylene) |
| External Diameter | :0.55mm |
| No. of Max Strands x Strand Size | :1 x 0.255mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Conductor Make-up | :1 / 30AWG |
| Outer Diameter | :0.55mm |
| Wire Size | :30AWG |
| Weight (kg) | 1 |
| Tariff No. | 85444995 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Hook-Up Wire Brochure |
| Datasheets | 2841/1 Spec Sheet |
| Datasheets | Hook-Up Wire Catalog |
| Datasheets | Hook-Up Wire Ordering Guide |
