Alpha Wire

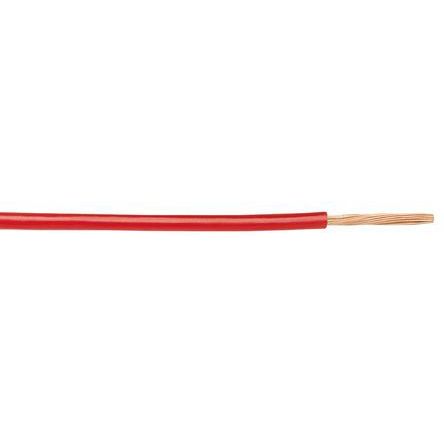

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Hook-up Wire |
| RoHS | RoHS Compliant |
| Stranding | 7 x 36 |
| Voltage Rating | 300 V |
| Length | 100 ft |
| Wire Gauge - AWG | 28 |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Maximum Temperature | + 105 C |
| Type | UL AWM 1007, 1581, 1569 VW-1 |
| Jacket Color | Red |
| Series | 3048 |
| Outside Diameter | 1.19 mm |
| Packaging | Spool |
| Wire Type | Hook-Up/Lead Wire |
| Ratings | UL Style 1007/1569 |
| Jacket (Insulation) Thickness | 0.016" (0.41mm) |
| Jacket (Insulation) Diameter | 0.047" (1.19mm) |
| Wire Gauge | 28 AWG |
| Cable Type | Hook Up |
| Conductor Strand | 7/36 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Voltage | 300V |
| Standard Package | 1 |
| Operating Temperature | -40°C ~ 105°C |
| rohs | Lead free / RoHS Compliant |
| Unit Weight | 3.200000 oz |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| Conductor Size AWG | :28AWG |
| Conductor Area CSA | :0.072mm² |
| Jacket Colour | :Red |
| Jacket Material | :PVC (Polyvinyl Chloride) |
| External Diameter | :1.19mm |
| No. of Max Strands x Strand Size | :7 x 0.127mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Conductor Make-up | :7 / 36AWG |
| Outer Diameter | :1.19mm |
| Wire Size | :28AWG |
| Weight (kg) | 1 |
| Tariff No. | 85444995 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 3048 Spec Sheet |
| Datasheets | Hook-Up Wire Brochure |
| Datasheets | Hook-Up Wire Catalog |
| Datasheets | Hook-Up Wire Ordering Guide |
