Alpha Wire

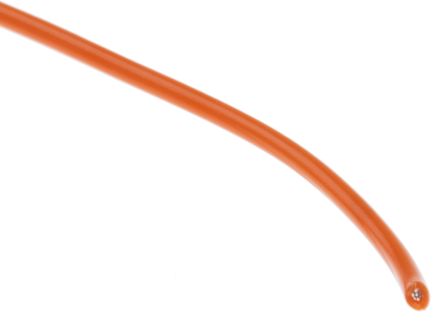

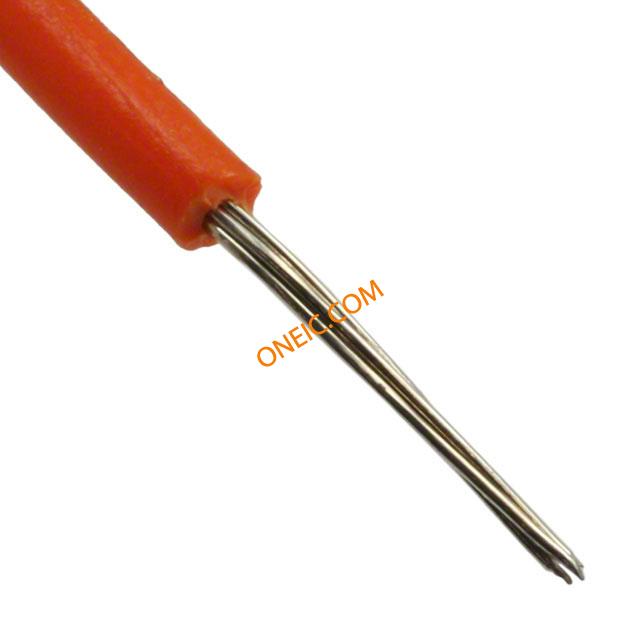

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Hook-up Wire |
| RoHS | RoHS Compliant |
| Stranding | 7 x 32 |
| Voltage Rating | 300 V |
| Length | 100 ft |
| Wire Gauge - AWG | 24 |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Maximum Temperature | + 105 C |
| Type | UL AWM 1007, 1581, 1569 VW-1 |
| Jacket Color | Orange |
| Series | 3050 |
| Outside Diameter | 1.45 mm |
| Packaging | Spool |
| Wire Type | Hook-Up/Lead Wire |
| Ratings | UL Style 1007/1569 |
| Jacket (Insulation) Thickness | 0.016" (0.41mm) |
| Jacket (Insulation) Diameter | 0.056" (1.42mm) |
| Wire Gauge | 24 AWG |
| Cable Type | Hook Up |
| Conductor Strand | 7/32 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Voltage | 300V |
| Standard Package | 1 |
| Operating Temperature | -40°C ~ 105°C |
| rohs | Lead free / RoHS Compliant |
| Cable Shape | Single Core |
| Core Strands | 7/0.2 mm |
| Cross Sectional Area | 0.23 mm |
| Current Rating | 6 A |
| Insulation Wall Thickness | 0.41mm |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Number of Strands | 7 |
| Outer Diameter | 1.42mm |
| Sheath Colour | Orange |
| Shield Type | Unshielded |
| Size of Strands | 0.2 mm |
| Standards Met | UL Listed |
| Unit Weight | 4.800000 oz |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| Conductor Size AWG | :24AWG |
| Conductor Area CSA | :0.229mm² |
| Jacket Colour | :Orange |
| Jacket Material | :PVC (Polyvinyl Chloride) |
| External Diameter | :1.45mm |
| No. of Max Strands x Strand Size | :7 x 0.2mm |
| Conductor Make-up | :7 / 32AWG |
| Wire Size | :24AWG |
| Weight (kg) | 1 |
| Tariff No. | 85444995 |
| SVHC | :No SVHC (20-Jun-2013) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Hook-Up Wire Brochure |
| Datasheets | 3050 Series |
| Datasheets | Hook-Up Wire Catalog |
| Datasheets | Hook-Up Wire Ordering Guide |
