Alpha Wire

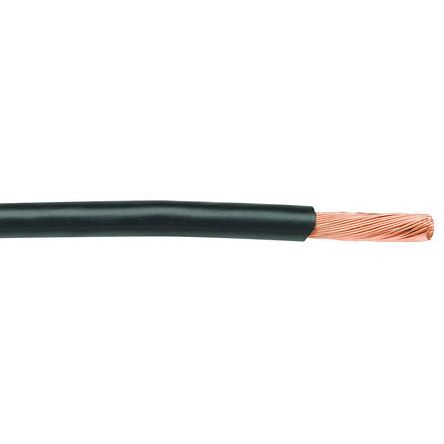

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Hook-up Wire |
| RoHS | RoHS Compliant |
| Stranding | 16 x 30 |
| Voltage Rating | 300 V |
| Length | 1000 ft |
| Wire Gauge - AWG | 18 |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Maximum Temperature | + 105 C |
| Type | UL AWM 1007, 1581, 1569 VW-1 |
| Jacket Color | Black |
| Series | 3055 |
| Outside Diameter | 2 mm |
| Packaging | Spool |
| Wire Type | Hook-Up/Lead Wire |
| Ratings | UL Style 1007/1569 |
| Jacket (Insulation) Thickness | 0.016" (0.41mm) |
| Jacket (Insulation) Diameter | 0.079" (2.01mm) |
| Wire Gauge | 18 AWG |
| Cable Type | Hook Up |
| Conductor Strand | 16/30 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Voltage | 300V |
| Standard Package | 1 |
| Operating Temperature | -40°C ~ 105°C |
| rohs | Lead free / RoHS Compliant |
| Unit Weight | 7.200 lbs |
| Standard Pack: | 1 |
| Reel Length (Imperial) | :1000ft |
| Reel Length (Metric) | :304.8m |
| Conductor Size AWG | :18AWG |
| Conductor Area CSA | :0.816mm² |
| Jacket Colour | :Black |
| Jacket Material | :PVC (Polyvinyl Chloride) |
| External Diameter | :2.03mm |
| No. of Max Strands x Strand Size | :16 x 0.255mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Cable UL Style Number | :UL1007 |
| Conductor Make-up | :16 / 30AWG |
| Current Rating | :15A |
| MSL | :- |
| No. of Cores | :1 |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-40°C |
| Outer Diameter | :2.03mm |
| Secondary Insulation Colour | :Black |
| Secondary Insulation Material | :PVC |
| Voltage Rating V AC | :300V |
| Wire Size | :18AWG |
| Weight (kg) | 3.42 |
| Tariff No. | 85444995 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Hook-Up Wire Brochure |
| Datasheets | Hook-Up Wire Catalog |
| Datasheets | 3055 Spec Sheet |
| Datasheets | Hook-Up Wire Ordering Guide |
