Alpha Wire

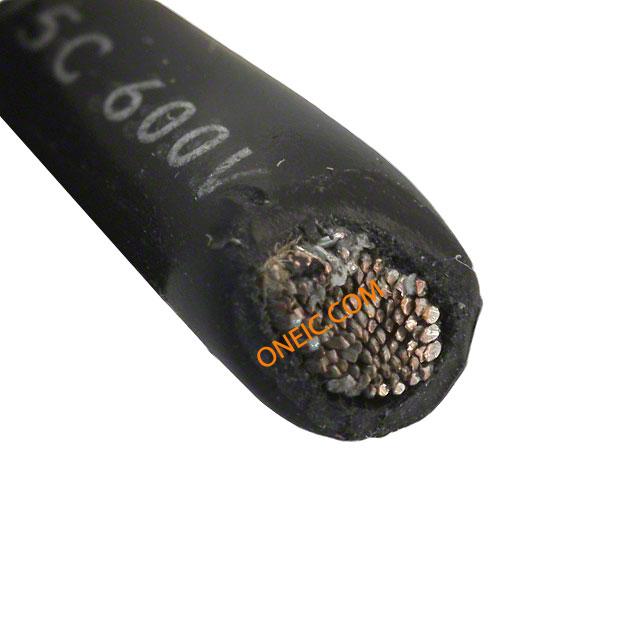

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Hook-up Wire |
| RoHS | RoHS Compliant |
| Stranding | 105 x 30 |
| Voltage Rating | 600 V |
| Length | 100 ft |
| Wire Gauge - AWG | 10 |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Maximum Temperature | + 105 C |
| Type | Multiple UL AWM Styles |
| Jacket Color | Black |
| Series | 3081 |
| Outside Diameter | 4.67 mm |
| Packaging | Spool |
| Wire Type | Hook-Up/Lead Wire |
| Ratings | UL Style 1015/1230 |
| Jacket (Insulation) Thickness | 0.032" (0.81mm) |
| Jacket (Insulation) Diameter | 0.184" (4.67mm) |
| Wire Gauge | 10 AWG |
| Cable Type | Hook Up |
| Conductor Strand | 105/30 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Voltage | 600V |
| Standard Package | 1 |
| Operating Temperature | -40°C ~ 105°C |
| rohs | Lead free / RoHS Compliant |
| Unit Weight | 4.500 lbs |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| Conductor Size AWG | :10AWG |
| Conductor Area CSA | :5.37mm² |
| Jacket Colour | :Black |
| Jacket Material | :PVC (Polyvinyl Chloride) |
| External Diameter | :4.83mm |
| No. of Max Strands x Strand Size | :105 x 0.255mm |
| Conductor Make-up | :105 / 30AWG |
| Outer Diameter | :4.83mm |
| Wire Size | :10AWG |
| Weight (kg) | 1 |
| Tariff No. | 85444995 |
| SVHC | :No SVHC (20-Jun-2013) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Hook-Up Wire Brochure |
| Datasheets | 3081 Spec Sheet |
| Datasheets | Hook-Up Wire Catalog |
| Datasheets | Hook-Up Wire Ordering Guide |
