Manufacturer Part Number:

5856 RD005

OneIC Part Number:

29-5856-RD005

Manufacturer:

Alpha Wire

Description:

Hook-up Wire 20AWG 19/32 PTFE 100ft SPOOL RED

Customer Reference:

Datasheet:

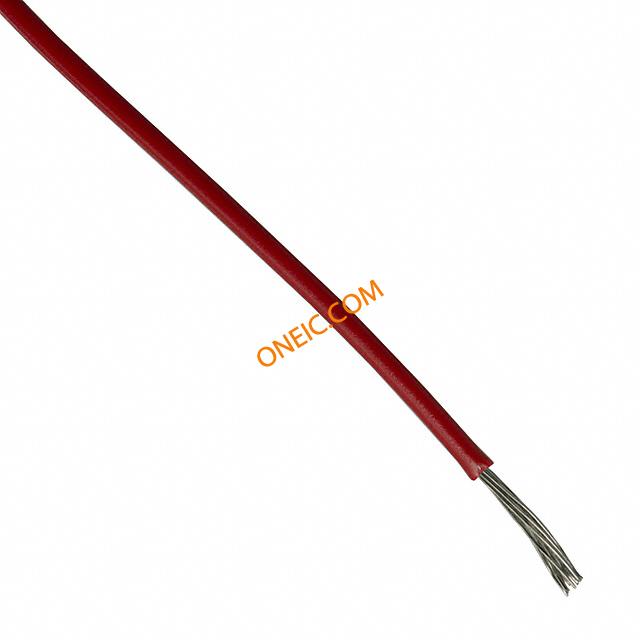

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Product Category	Hook-up Wire
RoHS	RoHS Compliant
Stranding	19 x 32
Voltage Rating	600 V
Length	100 ft
Wire Gauge - AWG	20
Insulation Material	Polytetrafluoroethylene (PTFE)
Maximum Temperature	+ 200 C
Type	MIL-DTL-16878/4 (Type E)
Jacket Color	Red
Series	5856
Features	Outstanding electrical properties
Outside Diameter	1.5 mm
Packaging	Spool
Wire Type	Hook-Up/Lead Wire
Ratings	UL Style 1213
Jacket (Insulation) Thickness	0.010" (0.25mm)
Jacket (Insulation) Diameter	0.058" (1.47mm)
Wire Gauge	20 AWG
Cable Type	Hook Up
Conductor Strand	19/32
Conductor Material	Copper, Silver Coated
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Voltage	600V
Standard Package	1
Operating Temperature	-60°C ~ 200°C
rohs	Lead free / RoHS Compliant
Unit Weight	12.800001 oz
Reel Length (Imperial)	:100ft
Reel Length (Metric)	:30.5m
Conductor Size AWG	:20AWG
Conductor Area CSA	:0.62mm²
Jacket Colour	:Red
Jacket Material	:PTFE (Polytetrafluoroethylene)
External Diameter	:1.5mm
No. of Max Strands x Strand Size	:19 x 0.2mm
SVHC	:No SVHC (20-Jun-2013)
Cable UL Style Number	:UL1213
Conductor Make-up	:19 / 32AWG
Current Rating	:17A
MSL	:-
No. of Cores	:1
Operating Temperature Max	:200°C
Operating Temperature Min	:-60°C
Outer Diameter	:1.5mm
Secondary Insulation Colour	:Red
Secondary Insulation Material	:PTFE
Voltage Rating V AC	:600V
Wire Size	:20AWG
Weight (kg)	1.2
Tariff No.	85444995

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Hook-Up Wire Brochure
Datasheets	Hook-Up Wire Ordering Guide
Datasheets	5856 Spec Sheet
Datasheets	Hook-Up Wire Catalog
