Alpha Wire

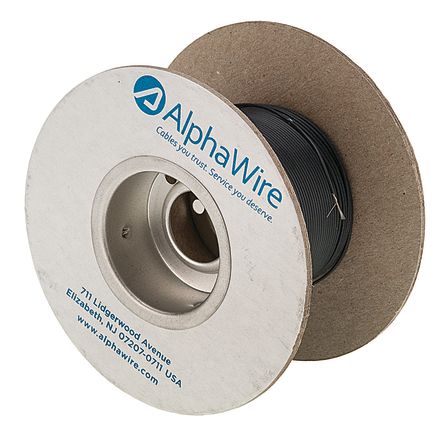

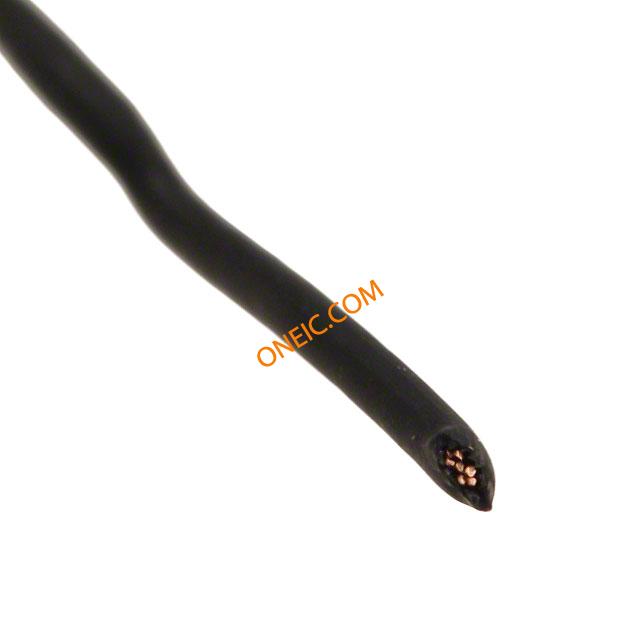

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Hook-up Wire |
| RoHS | RoHS Compliant |
| Stranding | 7 x 36 |
| Voltage Rating | 300 V |
| Length | 100 ft |
| Wire Gauge - AWG | 28 |
| Insulation Material | Modified Polyphenylene Ether (mPPE) |
| Maximum Temperature | + 110 C |
| Type | EcoWire |
| Jacket Color | Black |
| Series | 6820 |
| Features | Better dielectric strength, low specific gravity and 40 percent lighter |
| Outside Diameter | 0.79 mm |
| Tradename | EcoWire Plus |
| Wire Type | Hook-Up/Lead Wire |
| Life | New At Mouser |
| Jacket (Insulation) Thickness | 0.008" (0.20mm) |
| Jacket (Insulation) Diameter | 0.031" (0.79mm) |
| Wire Gauge | 28 AWG |
| Cable Type | Hook Up |
| Conductor Strand | 7/36 |
| Conductor Material | Copper, Bare |
| Jacket (Insulation) Material | Polyphenylene Ether (PPE) |
| Voltage | 300V |
| Standard Package | 1 |
| Operating Temperature | -40°C ~ 110°C |
| Other Names | 6820BK005 |
| rohs | Lead free / RoHS Compliant |
| Cable Shape | Single Core |
| Core Strands | 7/0.12 mm |
| Cross Sectional Area | 0.09 mm |
| Insulation Wall Thickness | 0.2mm |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -40°C |
| Number of Strands | 7 |
| Outer Diameter | 0.79mm |
| Sheath Colour | Black |
| Shield Type | Unshielded |
| Size of Strands | 0.12 mm |
| Standards Met | ISO 6722, REACH Compliant, RoHS Compliant |
| Unit Weight | 1.440000 oz |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| Conductor Size AWG | :28AWG |
| Conductor Area CSA | :0.09mm² |
| Jacket Colour | :Black |
| Jacket Material | :MPPE (Modified Polyphenylene Ether) |
| External Diameter | :0.79mm |
| No. of Max Strands x Strand Size | :7 x 0.12mm |
| SVHC | :No SVHC (16-Dec-2013) |
| MSL | :- |
| Weight (kg) | 0.04 |
| Tariff No. | 85444920 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Eco,EcoWire Plus Brochure |
| Datasheets | 6820 Spec Sheet |
