Manufacturer Part Number:

P0585NL

OneIC Part Number:

291-P0585NL

Manufacturer:

pulse

Description:

Telecom Transformer 1:1:1:1:1 3000Vrms 0.33Ohm Prim. DCR 0.18Ohm Sec. DCR Through Hole

Customer Reference:

Datasheet:

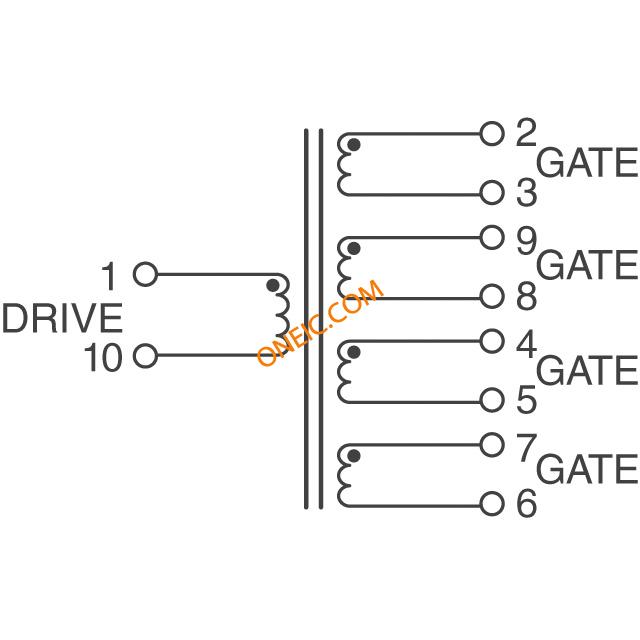

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Lead Style	PC Pin
Family	P0585
Maximum DCR Primary Side	0.33 Ohm
Maximum Isolation Voltage	3000 Vrms
Maximum OCL Inductance	0.45(Min) mH
Turns Ratio	1:1:1:1:1
Standard Package	Bulk
Product Length	20.57
EU RoHS	Compliant
Maximum Operating Temperature	130
Maximum Primary Leakage Inductance	3
Number of Terminals	10
Maximum DCR Secondary Side	0.18
Product Height	19.05
Packaging	Tray
Product Depth	12.19
Transformer Type	Offline Gate Drive Transformer
Mounting	Through Hole
Maximum DCR Primary Side	0.33
Minimum Operating Temperature	-40
Maximum OCL Inductance	0.45(Min)
Mounting Type	Through Hole
Height - Seated (Max)	19.05mm
Size / Dimension	20.57mm L x 12.19mm W
Inductance	450µH
Other Names	P0585NL-ND
rohs	Lead free / RoHS Compliant
Factory Pack Quantity	80
Frequency Range	50 kHz to 500 kHz
Product Category	Transformers Audio & Signal
Dimensions	20.57 mm L x 12.19 mm W x 19.05 mm H
Operating Temperature Range	- 40 C to + 130 C
Maximum DC Resistance	330 mOhms
Series	P0585
Termination Style	Radial
Product	Offline Gate Drive Transformers
Height	19.05 mm
Width	12.19 mm
Length	20.57 mm
Isolation Voltage	3 kV
RoHS	RoHS Compliant
Operating Temp Range	-40C to 130C
Pin Count	10
Operating Temperature Max Deg. C	130C
Operating Temperature Min Deg. C	-40C
Product Length (mm)	20.57 mm
Product Depth (mm)	12.19 mm
Product Height (mm)	19.05 mm
Primary Leakage Inductance (Max)	3 uH
OCL Inductance (Max)	0.45(Min) mH
Isolation Voltage (Max)	3000Vrms
Rad Hardened	No
DCR Primary Side Max	0.33 Ohm
DCR Secondary Side Max	0.18 Ohm
Primary Leakage Inductance	3 uH
OCL Inductance	0.45 mH
DCR Primary Side	0.33 Ohm
DCR Secondary Side	0.18 Ohm

Documents & Media

RESOURCE TYPE	LINK
Datasheets	P0584/P0585 Offline Gate Drive Xfrmrs
