Manufacturer Part Number:

1SS356TW11

OneIC Part Number:

293-1SS356TW11

Manufacturer:

rohm semiconductor

Description:

Diode PIN Switch 35V 2-Pin UMD T/R

Customer Reference:

Datasheet:

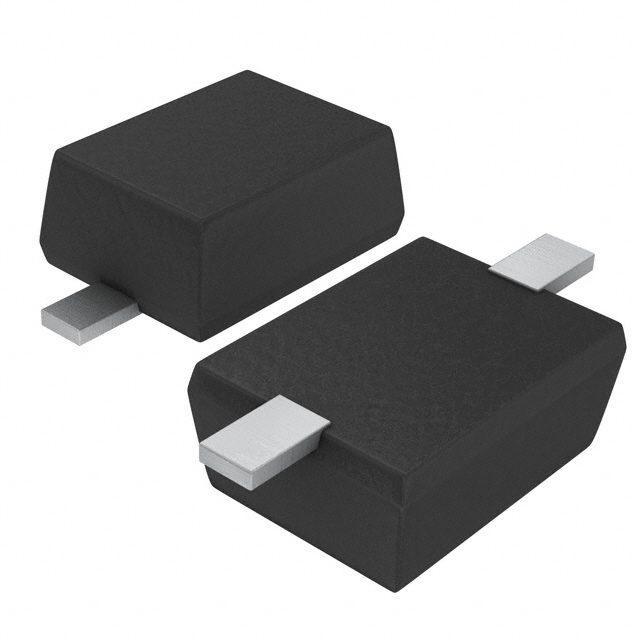

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	2UMD
Configuration	Single
Maximum Reverse Voltage	35 V
Maximum Forward Current	100 mA
Maximum Forward Voltage	1@10mA V
Maximum Diode Capacitance	1.2@6V pF
Mounting	Surface Mount
Type	Switch
Standard Package	Tape & Reel
Matchcode	1SS356
V(RRM)	35V
V(F)	0.83V
Unit Pack	3000
Standard Leadtime	16 weeks
MOQ	3000
T(j) min	-55°C
I(F)	0.1A
T(j) max	125°C
Leadfree Defin.	RoHS-conform
Current - Max	100mA
Capacitance @ Vr, F	1.2pF @ 6V, 1MHz
Resistance @ If, F	900 mOhm @ 2mA, 100MHz
Supplier Device Package	UMD2
Voltage - Peak Reverse (Max)	35V
Packaging	Tape & Reel (TR)
Package / Case	SC-90, SOD-323F
Power Dissipation (Max)	200mW
Diode Type	Standard - Single
rohs	Lead free / RoHS Compliant
Other Names	1SS356TW11CT
Reverse Current IR	10 nA
Product Category	PIN Diodes
Forward Current	100 mA
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Reverse Voltage	35 V
Forward Voltage	1 V at 10 mA
Factory Pack Quantity	3000
Maximum Series Resistance @ Maximum IF	0.9 Ohms at 2 mA
RoHS	RoHS Compliant
DELETED	Compliant

Documents & Media

RESOURCE TYPE	LINK
Datasheets	1SS356
