Manufacturer Part Number:

BH1417F-E2

OneIC Part Number:

293-BH1417F-E2

Manufacturer:

ROHM Semiconductor

Description:

RF Transmitter COMMUNICATION LINK

Customer Reference:

Datasheet:

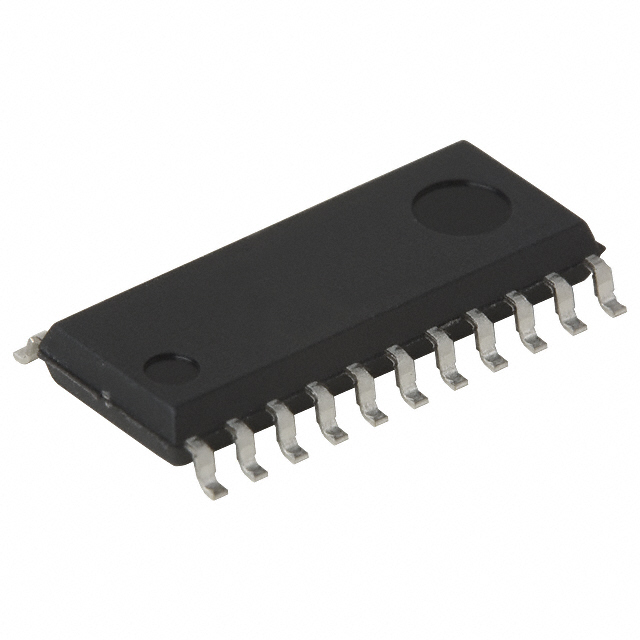

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Unit Pack	2000
MOQ	2000
Current - Transmitting	20mA
Power - Output	-7dBm
Antenna Connector	PCB, Surface Mount
Data Interface	PCB, Surface Mount
Packaging	Tape & Reel (TR)
Applications	Wireless Audio Link LSI
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	4 V ~ 6 V
Standard Package	2,000
Modulation or Protocol	FM
Frequency	76MHz ~ 90MHz, 87.5MHz ~ 108MHz
Other Names	BH1417F-E2TR
Package/Case	22-SOP
rohs	Lead free / RoHS Compliant
Operating Supply Voltage	4 V to 6 V
Mounting Style	SMD/SMT
Product Category	RF Transmitter
Factory Pack Quantity	2000
Type	FM Stereo Transmitter
Minimum Operating Temperature	- 40 C
Package / Case	SOP-22
Operating Frequency	77 MHz to 108 MHz
Maximum Operating Temperature	+ 85 C
RoHS	RoHS Compliant
调制或协议	FM
电流 - 传输	20mA
操作温度	-40°C ~ 85°C
电压 - 电源	4 V ~ 6 V
频率	76MHz ~ 90MHz, 87.5MHz ~ 108MHz
天线连接器	PCB, Surface Mount
封装/外壳	22-SOP
应用	Wireless Audio Link LSI
功率 - 输出	-7dBm
数据接口	PCB, Surface Mount
Brand	ROHM Semiconductor

Documents & Media

RESOURCE TYPE	LINK
Datasheets	BH1417F
