Manufacturer Part Number:

BH1426GWL-E2

OneIC Part Number:

293-BH1426GWL-E2

Manufacturer:

ROHM Semiconductor

Description:

RF Transmitter IC AUDIO LINK 76-108MHZ 2.7-3.6V

Customer Reference:

Datasheet:

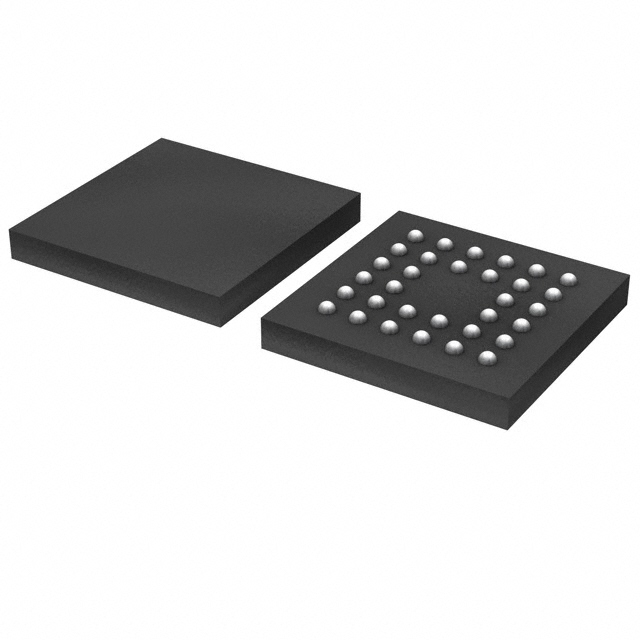

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
RoHS	RoHS Compliant
Packaging	Reel
Life	NRND: Not recommended for new designs.
Unit Pack	2500
MOQ	2500
Current - Transmitting	23mA
Power - Output	-8dBm ~ -2dBm
Antenna Connector	PCB, Surface Mount
Data Interface	PCB, Surface Mount
Applications	Wireless Audio Link LSI
Operating Temperature	-20°C ~ 85°C
Voltage - Supply	2.7 V ~ 3.6 V
Standard Package	2,500
Modulation or Protocol	FM
Frequency	76MHz ~ 108MHz
Other Names	BH1426GWL-E2TR
Package/Case	32-UCSP50L3
rohs	Lead free / RoHS Compliant
调制或协议	FM
电流 - 传输	23mA
操作温度	-20°C ~ 85°C
电压 - 电源	2.7 V ~ 3.6 V
频率	76MHz ~ 108MHz
天线连接器	PCB, Surface Mount
封装/外壳	32-UCSP50L3
应用	Wireless Audio Link LSI
功率 - 输出	-8dBm ~ -2dBm
数据接口	PCB, Surface Mount
Operating Supply Voltage	2.7 V to 3.6 V
Factory Pack Quantity	2500
Type	Transmitter
Brand	ROHM Semiconductor
Mounting Style	SMD/SMT
Supply Voltage - Max	3.6 V
Minimum Operating Temperature	- 20 C
Package / Case	UCSP50L3
Operating Frequency	76 MHz to 108 MHz
Maximum Operating Temperature	+ 85 C

Documents & Media

RESOURCE TYPE	LINK
Datasheets	BH1426GWL
