Manufacturer Part Number:

RN142ZST2R

OneIC Part Number:

293-RN142ZST2R

Manufacturer:

ROHM Semiconductor

Description:

PIN Diodes 30V Vr 50mA 1V Vf 0.1uA Ir -55-150 C

Customer Reference:

Datasheet:

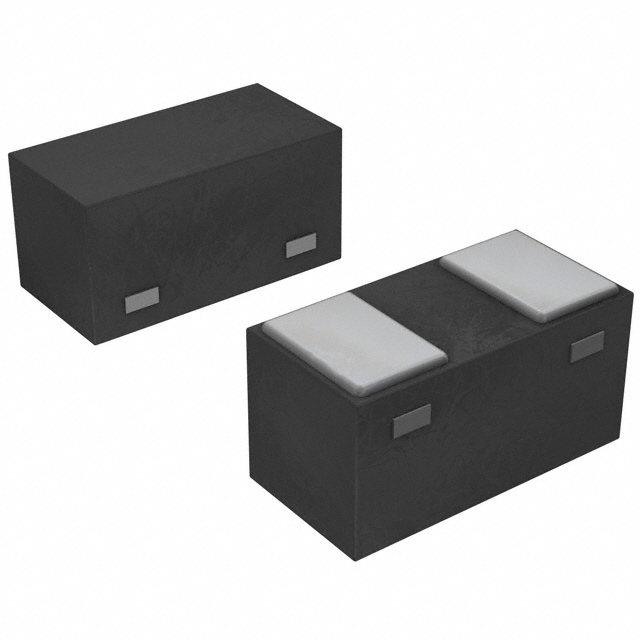

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Current - Max	50mA
Standard Package	8,000
Capacitance @ Vr, F	0.45pF @ 1V, 1MHz
Resistance @ If, F	1.5 Ohm @ 10mA, 100MHz
Supplier Device Package	GMD2
Voltage - Peak Reverse (Max)	30V
Packaging	Tape & Reel (TR)
Package / Case	GMD2
Diode Type	PIN - Single
Other Names	RN142ZST2RTR
rohs	Lead free / RoHS Compliant
Maximum Diode Capacitance	0.45 pF
Reverse Current IR	0.1 uA
Product Category	PIN Diodes
Forward Current	50 mA
Mounting Style	SMD/SMT
Reverse Voltage	30 V
Forward Voltage	1 V
Maximum Series Resistance @ Minimum IF	2.5 Ohms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Maximum Series Resistance @ Maximum IF	1.5 Ohms
RoHS	RoHS Compliant
电压 - 峰值反向（最大值）	30V
不同 Vr、F 时的电容	0.45pF @ 1V, 1MHz
不同 If、F 时的阻值	1.5 Ohm @ 10mA, 100MHz
封装/外壳	GMD2
电流 - 最大值	50mA
二极管类型	PIN - Single
Factory Pack Quantity	8000
Series	RN142ZS
If - Forward Current	50 mA
Vr - Reverse Voltage	30 V
Ir - Reverse Current	0.1 uA
Brand	ROHM Semiconductor
Termination Style	SMD/SMT
Height	0.3 in
Length	0.6 in
Vf - Forward Voltage	1 V

Documents & Media

RESOURCE TYPE	LINK
Datasheets	RN142ZS
