Phoenix Contact

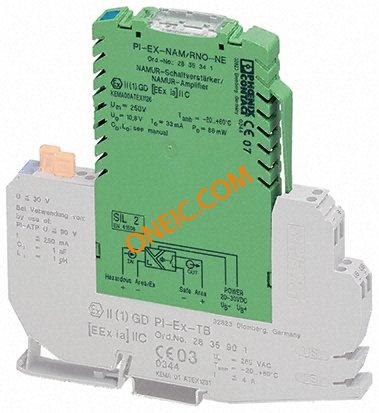

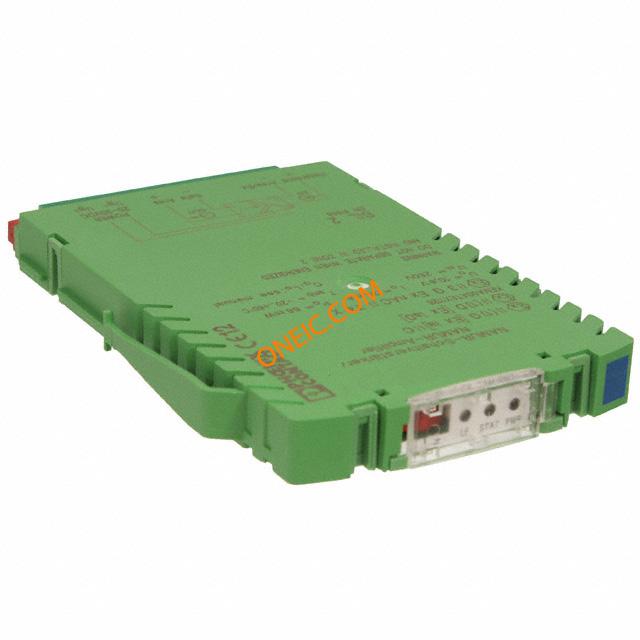

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Output Device | Transistor |
| EU RoHS | Compliant |
| Package Height | 145 |
| Mounting | DIN Rail |
| Number of Channels per Chip | 1 |
| Package Width | 12.4 |
| Package Length | 147 |
| Industry Aliases | PI-EX-NAM/RNO-NE |
| Subcategory | OptoCoupler |
| Lead Time | 28 Days |
| Series | * |
| Standard Package | 1 |
| rohs | Lead free / RoHS Compliant |
| Barrier Type | Galvanic |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Number of Channels | 1 |
| Safety Current Maximum | 33mA |
| Safety Voltage Maximum | 10.6 V |
| Signal Type | NAMUR Input, Relay Output |
| Supply Voltage | 20 → 30 V dc |
| Factory Pack Quantity | 1 |
| Product | Signal Isolators |
| Product Category | Interface Modules |
| Current Rating | 40 mA |
| Tradename | INTERFACE Ex |
| Voltage Rating | 20 VDC to 30 VDC |
| Color | Green |
| Unit Weight | 3.333389 oz |
| Height | 145 mm |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Width | 12.4 mm |
| Length | 147 mm |
| Mounting Style | DIN Rail |
| RoHS | RoHS Compliant |
| 最大安全电流 | 33mA |
| 电源电压 | 20 → 30 V 直流 |
| 最高工作温度 | +60°C |
| 最低工作温度 | -20°C |
| 工作温度范围 | -20 → +60 °C |
| 最大安全电压 | 10.6 V |
| 屏障类型 | 流电产生 |
| 信号类型 | NAMUR 输入，继电器输出 |
| 通道数目 | 1 |
