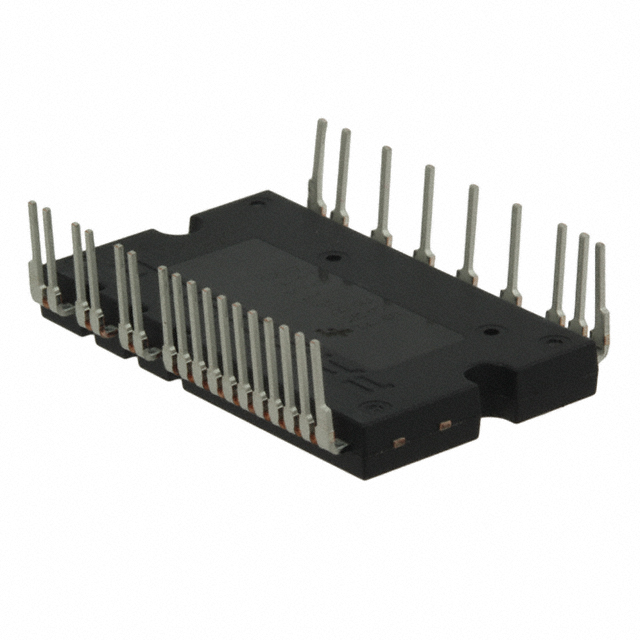

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 26SPM26-AAA |
| Operating Temperature | -40 to 150 °C |
| Standard Package | Rail / Tube |
| Supplier Package | SPM26-AAA |
| EU RoHS | Compliant |
| Pin Count | 26 |
| Voltage - Isolation | 2000Vrms |
| Package / Case | Module |
| Current | 500mA |
| Voltage | 600V |
| Configuration | 3 Phase Inverter |
| Type | IGBT |
| rohs | Lead free / RoHS Compliant |
| Gate-Emitter Leakage Current | 1 mA |
| Collector-Emitter Saturation Voltage | 1.6 V |
| Product Category | IGBT Transistors |
| Factory Pack Quantity | 12 |
| Series | FNB41560 |
| Unit Weight | 0.589498 oz |
| Collector- Emitter Voltage VCEO Max | 600 V |
| Mounting Style | SMD/SMT |
| Power Dissipation | 34 W |
| Packaging | Tube |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| RoHS | RoHS Compliant |
| Mounting | Through Hole |
| Operating Temperature (Max) | 150C |
| Operating Temperature (Min) | -40C |
| Screening Level | Automotive |
| Case Height | 4.5 mm |
| Rad Hardened | No |
| 电压 - 隔离 | 2000Vrms |
| 系列 | Motion-SPM® |
| 配置 | 3 Phase Inverter |
| 封装/外壳 | Module |
| 电压 | 600V |
| 类型 | IGBT |
| 电流 | 500mA |
| 封装类型 | PDIP |
| 输出配置 | 3 相 |
| 最高工作温度 | +150 °C |
| 安装类型 | 通孔 |
| 最大工作电源电压 | 16.5 V |
| 高度 | 4.8mm |
| 最低工作温度 | -40 °C |
| 最小工作电源电压 | 13.5 V |
| 宽度 | 23.5mm |
| 最大隔离额定值 | 2000Vrms |
| 最大集电极-发射极电压 | 600 V |
| 最大IGBT集电极电流 | 15A |
| 引脚数目 | 26 |
| 长度 | 39.5mm |
| 典型开关频率 | 20kHz |
| 电动机类型 | 交流感应 |
| 尺寸 | 39.5 x 23.5 x 4.8mm |
| Brand | Fairchild Semiconductor |
| Pd - Power Dissipation | 34 W |
| Height | 6 mm |
| Length | 39 mm |
| Technology | Si |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | FNB41560 |
