fairchild semiconductor

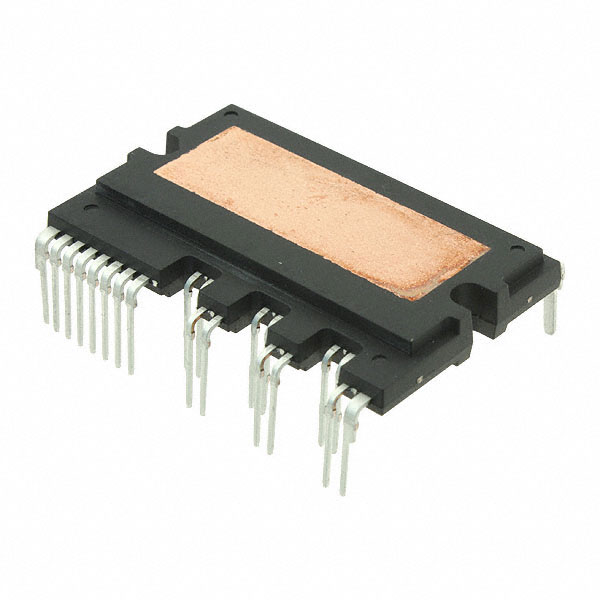

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 27SPM27-GA |
| Operating Temperature | -20 to 125 °C |
| Standard Package | Rail / Tube |
| Supplier Package | SPM27-GA |
| Standard Package Name | SPM27-GA |
| EU RoHS | Compliant |
| Package Height | 5.5 |
| Mounting | Through Hole |
| Package Width | 26.8 |
| PCB | 27 |
| Package Length | 44 |
| Pin Count | 27 |
| Type | IGBT |
| Package / Case | SPM27GA |
| Current | 20A |
| Voltage | 600V |
| Configuration | 2 Phase |
| Voltage - Isolation | 2500Vrms |
| rohs | Lead free / RoHS Compliant |
| Operating Supply Voltage | 20 V |
| Mounting Style | Through Hole |
| Product | Electromechanical Drivers |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| Output Current | 5 mA |
| Factory Pack Quantity | 10 |
| Series | FPDB30PH60 |
| Unit Weight | 0.469849 oz |
| Packaging | Tube |
| Power Dissipation | 83 W |
| Output Voltage | +/- 0.3 V |
| Supply Current | 26 mA |
| RoHS | RoHS Compliant |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -20C |
| Case Length | 44 mm |
| Screening Level | Commercial |
| Case Height | 5.5 mm |
| Rad Hardened | No |
| DELETED | Compliant |
| IPM Power Device | :IGBT |
| Voltage Rating (Vces / Vdss) | :600V |
| Current Rating (Ic / Id) | :30A |
| Isolation Voltage | :2.5kV |
| IPM Mounting Type | :PCB |
| SVHC | :No SVHC (16-Dec-2013) |
| Transistor Case Style | :SPMGA-027 |
| Weight (kg) | 0.01 |
| Tariff No. | 85412900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | FPDB30PH60 |
